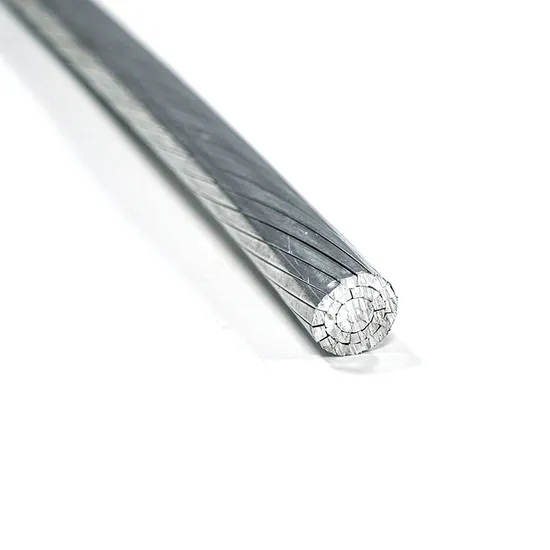

High Quality All Aluminium Conductor AAC Conductor

Product Description

Product DescriptionMaterial Standard:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced -For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced

Code	Size	Section	No. of Strands	Diameter Strands	Weight	Rated Strength	Maximunm Resistance @20°C
	AWG o MCM	in²	mm	mm	kg/km	kg	Ω/km
Peachbell	6	13.3	7×1.56	4.66	36.6	254	2.170
Rose	4	21.15	7×1.96	5.88	58.3	399	1.364
Iris	2	33.62	7×2.47	7.42	92.7	611	0.857
Pansy	1	42.41	7×2.78	8.33	117	740	0.681
Poppy	1/0	53.51	7×3.12	9.36	147.5	897	0.539
Aster	2/0	67.44	7×3.50	10.51	186	1136	0.427
Phlox	3/0	85.02	7×3.93	11.8	235	1375	0.339
Oxlip	4/0	107	7×4.42	13.25	296	1738	0.268
Daisy	266.8	135	7×4.96	14.88	373	2191	0.213
Laurel	266.8	135	19×3.01	15.05	373	2254	0.213
Tulip	336.4	171	19×3.38	16.9	470	2786	0.169
Canna	397.5	201	19×3.68	18.38	555	3219	0.143
Cosmos	477	242	19×4.02	20.12	666	3803	0.119
Syringa	477	242	37×2.88	20.18	666	3932	0.119
Dahlia	556.5	282	19×4.35	21.73	777	4431	0.102
Mistletoe	556.5	282	37×3.11	21.8	777	4495	0.102
Orchid	636	322	37×3.33	23.31	888	5154	0.089
Violet	715.5	363	37×3.53	24.73	1000	5791	0.079
Nasturtium	715.5	363	61×2.75	24.76	1000	5960	0.079
Arbutus	795	403	37×3.72	26.07	1110	6303	0.071
Lilac	795	403	61×2.90	26.11	1110	6501	0.071
Anemone	874.5	443	37×3.91	27.37	1222	6821	0.065
Crocus	874.5	443	61×3.04	27.36	1222	7144	0.065
Magnolia	954	483	37×4.08	28.55	1333	7428	0.059

---
