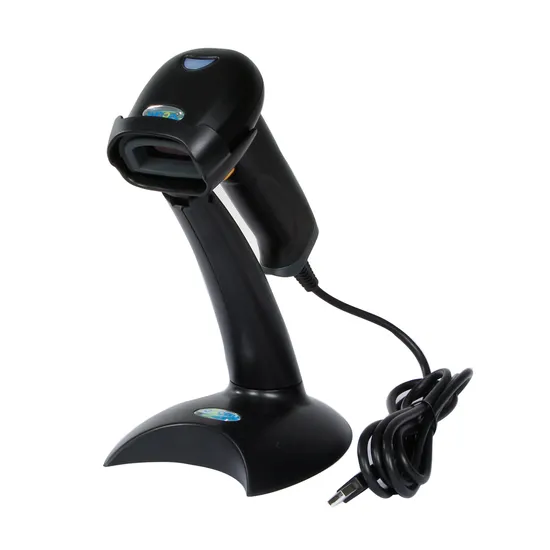

USB Port Handheld Laser Barcode Scanner

Product Description

USB port handheld laser barcode scanner
(Model:OCBS-LA06)
Keywords:
barcode scanner
laser barcode scanner
handheld scanner
handheld barcode scanner
usb barcode scanner
Feature:
Auto-Induction built in,green design;
High scan rate and long reading distance;
Excellent decode capability;
KBW, RS232 and USB supported;
Durable construction combined with future-proofing;
Specification:

Performance Characteristics
Light Source:	Visible laser (650-670nm)
Scan Rate:	100 scans per second
Reading Distance	2.5 ~600mm (100% UPC/EAN)
Scanner Type:	Bi-directional
Resolution:	0.10mm (4mil) at PCS 0.9
Print Contrast Minimum:	20%, minimum reflective difference (@650nm)
Decode Capability:	UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5
Physical Characteristics
Interfaces Supported:	PS2, RS232, USB
Voltage:	DC+5V+/-5%
Current:	100 mA
Idle Current:	<40 mA
Power Source:	Host power or external (RS232) power supply
Scanning Angle	Inclination 45° Elevation 60°
Dimensions:	L165.42mm X W69.72mm X H89.67mm
Weight:	140g (without stand)
Stand	With
Color:	Ivory and black
User Environment
Operating Temperature:	0ºC~50ºC
Storage Temperature:	-40ºC~ 70ºC
Humidity:	5~95% relative humidity, non-condensing
Electrostatic Discharge:	Confirm to +/-15KV air discharge and +/-8KV of contact discharge
Drop Specifications:	Withstands multiple 1.5m drops to concrete
Safe:
EMI/RFI:	FCC Class A and CE
Laser Safety:	CDRH class 2 laser product

1. Warranty
OCOM is dedicated to providing most cost-effective products and services with highest quality that will meet customers'satisfication, our warranty of the products is about 12 months from the shipment normally, some designated models can have as long as 24 months warranty. For mass order, we can supply you some spare parts for local repair. And after that, you can returned failure parts for reworks.
2. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable. Escrow Service is powered by szocomtech.en.made-in-china.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
3. Shipment
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
4. Sample Availability & Policy
After customers confirmed our specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, and the samples price is a little higher than mass order. When the mass order placed, we can return you the samples cost, or send you more products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress: http://szocomtech.en.made-in-china.com The sample order is needed before we release to our factorie
5. After-sales Service:
(1) All products warranty is not less than one year, some models even up to two years warranty. (2) Spare parts will be provided for mass orders for customers' local maintenance. (3) Have distributors or authorized agents in main market who can provide local repair and replacement services. (4) Professional CRM management insures fast customer's enquiries and orders tracking. (5) Sales with many years experience in foreign trade, proficient in foreign languages and strong sense of responsibility. (6) 7*24 hours online, working days respond within four hours, rest days within 12 hours.
6. Download
You can access http://szocomtech.en.made-in-china.com download drivers, SDK software, product specifications and user manuals.
7. Video Guide
To help customers use our products better, we have recorded and upload some video guidance, you can find them at http://szocomtech.en.made-in-china.com.
8. MOQ policy
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
9. Request a quote
Request a quote at http://szocomtech.en.made-in-china.com
