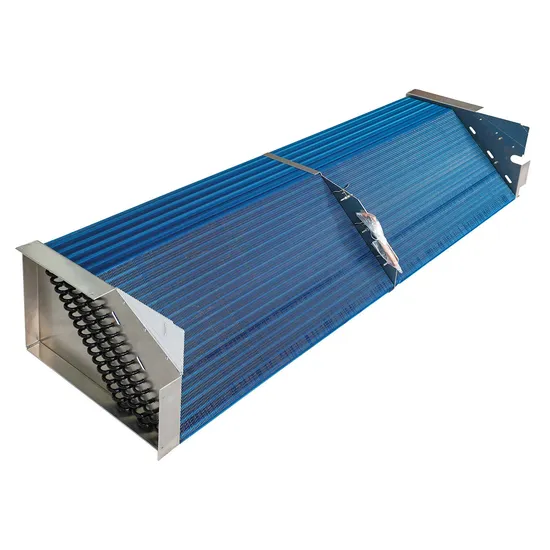

Customized Copper Tube Aluminum Fin Heat Exchanger

Product Description

Company Profile
EAST, based in Qingdao, Shandong Province, is a Danish-owned company with US$5 million invested by EMF. Focus on the research and innovation for high COP heat exchangers, EAST is not only a high-quality refrigeration components manufacturer but also the professional entire solution provider. EAST has been serving the refrigeration industry especially the refrigerated containers for rather long term already and has successfully established tight strategic partnership with customers meanwhile always anticipate Customers' R&D project. The outstanding anti-corrosion technology together with the green processing methods, strongly support EAST deliver the high COP heat exchangers continuously as the invaluable contribution for environment friendly.
· EAST has two R & D centers in Portugal and Qingdao, China
· Professional R & D team leads EAST rapid development in recent years, obtained tens of patents to keep the advanced position
· ODM & OEM Design Development
· Long-term strategic partnership with Maersk Industries
Product Description
Metarials:

Copper tube, Alumimum fin
Features:

Compact Structure
The combination can adapt to different heat exchange conditions such as: counterflow, staggered flow, multi-stream flow and multi-pass flow.
Hi-COP
Large heat transfer coefficient due to fluid perturbation bu the fins, resulting in continuous rupture of the boundary layer.
Anti-corrosion
Preferred materials, anti-oxidation, corrosion resistance, longer service life.
Finned tube heat exchangers are versatile and find applications across various industries:
Air Conditioning: They are widely used in HVAC systems to cool and dehumidify air efficiently.Power Plants: In power generation, finned tube heat exchangers help manage heat in steam cycles, ensuring optimal performance.Refrigeration: These heat exchangers are essential in refrigeration systems, facilitating effective heat removal from refrigerants.
Manufacturing Capacity

Fin Processing Capability Table
Tube OD		Fin Spec		Fin Pattern	Fin Pitch
mm	inches	mm	inches		mm	FPI
5	1/5	25×21.65	0.984×0.825	wave surface	1.6-4.0	6-16
7	/	21×18.19	0.828×0.716	wave surface/Louvered	1.2-6.2	4-22
		25×21.65	0.984×0.825	wave surface	2.00	12-13
9.52	3/8	25×21.65	0.984×0.825	wave surface	1.2-6.0	4-22
				Sine wave pattern-60°Bevel	2.5-3.95	6-11
15.88	5/8	38.1×33	1.5×1.3	wave surface	1.6-6.0	4-16
7+5	/	25×21.65	0.984×0.825	wave surface	3.00	8-9
9.52+7	/	25×25	0.984×0.984	wave surface-60°Bevel	3.2-4.0	6-8

Quality Assurance
Using the most advanced process technology
The use of international first-class brazing welding equipment
100% vacuum helium leak detection
X-ray welding penetration detection
Tank body adopts automatic welding equipment
Delivery

---
