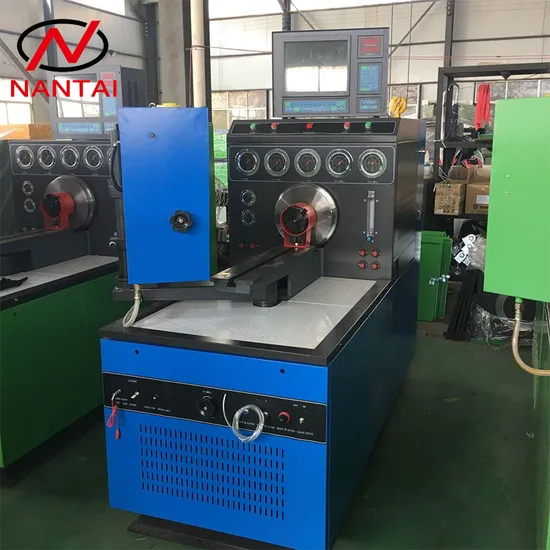

Nantai Nts619 Diesel Fuel Injection Pump Test Bench

Product Description

Product Description
NTS619 adopt industrial pc with color LCD, Its the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
Main Function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5.Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13. Oil lubricate(on request)
14.Cast iron base(on request)
15. Foced cooller(on request)
16. Two operating systems(Computer control + Digital control)
17. LCD touch screen (on request)
Product Parameters

Adjustable cylinders	Out power(Kw)	RPM	Rpm pre-set	Temperature control system	Positive pressure system	negative pressure system
12	7.5,11,15 18.5,22	0-4000	√	√	√	√
Air supply	DC power supply	internal pressure of VE pump	Oil return of VE pump	travel of tooth bar	Advanced angle	Capability with pump type
√	√	√	√	(On request)	(On request)	All in- line and rotary pump
