Pd1200 Bag Lifting Top Discharge Flat Plate Medical Centrifuge

Product Description

Product Description

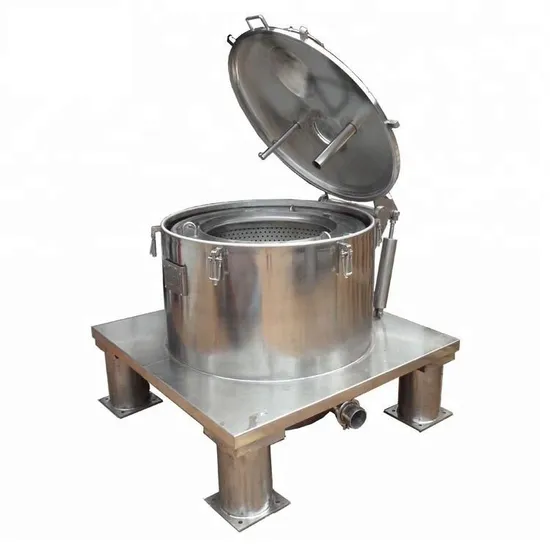

PD1200 bag lifting Top discharge Flat Plate Medical Centrifuge
1.brief introduction of centrifuge
This type of bag hoist discharge centrifuge are filter equipment with hermetic closure procedure task, intermittent operation and hanging bag off-site discharge. 2.working principle of centrifuge
The material is fed into the drum from the top; under the action of the centrifugal force filed, the liquid-phase passes through the filter medium and is discharged out of the machine, while the solid-phase material is retained inside the drum; after the machine is stopped, the liquid-block plate together with the filter bag is hoisted with the sling out of the machine and transferred to the designated discharge site. Working principles:
1) Airtight equipment
2) The material is fed from the upper into the rotary drum
3) Under the centrifugal force function, the liquid passes through the filtering medium and discharges out of the machine
4) The solid is left in the rotary drum
5) After the machine is stopped, unload the material
6) Advantages: large capacity, high efficiency, simple operation, fast unloading, good guarding function, clean surrounding
Specifications:

Model	PD800	PD1000	PD1250	PD1500
Bowl	Inner diameter/mm	800	1000	1250	1500
	Effective height/mm	400	500	600	745
	Filtration area/M2	1	1.57	2.36	3.53
	Effective volume/L	100	155	420	600
	Max. loading /Kg	135	200	530	800
	Rotating speed r/min	1200	1080	950	850
	Max. Separating facto	644	644	630	605
Motor power/Kw		7.5	11	18.5	22
Dimension(L×W×H)/mm		1650×1200×1220	2000×1500×1400	2400×1800×1520	2650×2100×1820
Weight /Kg		1500	2600	4000	6400

Details The motor of lifting bag centrifuge The motor connection of lifting bag centrifuge is external. We can provide standard normal motor or explosion-proof motor. Normal
power supply is 380V 50Hz 3-phase. Different in different country can be customized. The bowl of lifting bag centrifuge The bowl is the main part of lifting bag centrifuge.Same as normal filter centrifuge, there are many holes,and the liquid will
flow out from the holes, then discharge from the bottom of centrifuge.All stainless steel material or better meterial. The filter bag of lifting bag centrifuge Lifting bag centrifuge is the same as normal filter centrifugeneed to use filter bag to save the solid. About the material, four
kinds of material can be choosen. And also the mesh number can be customized. The lifting device of centrifuge This is the most important part of lifting bag centrifuge,for big capacity industrial centrifuge machine, the separated solid is so heavy,worker cannot discharge manually easily. The filter bag can be discharged and lifted mechanically. Performance characteristics The lifting bag centrifuge is start with frequency converter for stepless speed regulation,with a PLC (programmable logic
controller) to start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary control panel can operate both to improve safety sex,no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolating types of damping system that allows devices to be completely absorbing vibrations generated by change.
On the basis of the ground and the surrounding non-interference.Shell structure for the flip,can be laminated on the centrifuge drum shell with space for thorough cleansing.Structural design is reasonable,more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact for high cleanliness,washing demanding proof high grade solid-liquid separation.Lifting bag discharge,can be off-site discharge,improve efficiency,reduce labor intensity,environmental conditions fully comply with GMP standards. Applications:
This type filter centrifuge applies to both solid phase for the granular filtering, it can be used for dewatering fibrousmaterial, particularly high viscosity, fine particle size, toxic and hazardous, flammable materials in the filter. Forexample:gypsum, thiamine, glauber's salt, copper sulfate, nickel sulfate, a chloride, oil, acetic acid, borax, soda, rubberadditives, dye,plastic raw materials, fertilizer, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins,antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration,metal refining,watertreatment, volleyball acid plaster.

Packing & Delivery
We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country: At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries FAQ 1. What certificates do you have? We can provide CE, ISO 9001, etc 2. What is the warranty period of the equipment? Normally 1 year warranty. 3. Can we visit your factory? Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference. 4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc 5. Can it be customized? Of course, our equipment can be customized according to the actual requirements of customers. Our service The technical and after-sale services are listed as follows: 1. Provide free technical training, guidance and information of accessories. 2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues. 3. Our products with 1 years' warranty and life maintenance. 4. Once receive the customer complaints, we will response within 24 hours. 5. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details. 6. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation. 7. Our company will provide perfect after-sale services and technical support. Contact person: Cathy Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.

---
