High Frequency Induction Heating Machine for Melting Welding Forging

Product Description

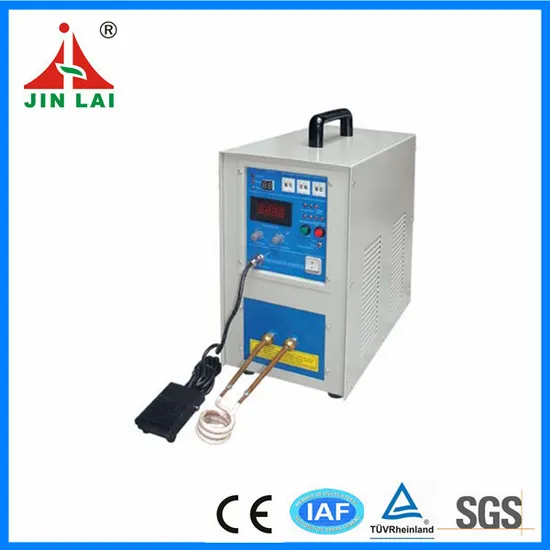

15/25kw High Frequency Induction Heating Machine for Welding Forging Melting
Main Feature: It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation. It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Technical Parameters:

Model	JL-15	JL-25
Input power desire	Single phase 220V 50/60HZ	3 phase 380V 50/60HZ
Oscillate power max	15KW	25KW
Max input current	37A	24A
Max input real power	7KW	15KW
Oscillate frequency	30-100KHZ	30-100KHZ
Cooling water desire	>0.2MPa 2-6L/Min ≤40°C	>0.2MPa 2-6L/Min ≤40°C
Duty cycle	100%	100%
Dimensions(L*W*H)	500*210*460mm	550*240*480mm
Net weight	22kg	32kg
Cable length	2-6(Meters)	2-6(Meters)

List of Accessories In The Package:

Item	Name of machine or parts	Specification	Amount
1	JL-15/ JL-25 Generator	-	1 set
2	Foot pedal	3 core	1 pcs
3	Induction Coils	-	2 sets
4	Instruction Manual	-	1 pcs
5	Product catalogs	-	2 sets

Main Parts Introduction:
1. Germany SIEMENS INFINEON IGBT Module. 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency
Machine Photos:

Our Service:
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
Company Informations:
Dongguan Jinlai Electromechanical Device Co.,Ltd., founded in 1996, which is engaged in R&D,
production andsale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
FAQ
China supplies induction heating power supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers.You an pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.
6.If I have paid but can not receive the goods, how should I do?
****** international website is a famous trade platform and has been mature those
years,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked
on China official website or we can show it to you,so that situation will never appear, please be assured.
7.Is your goods has ISO9001 or CE certificate ?
Yes,all our goods has ISO and CE certificate. All machines are high quality goods.
8.What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
High Frequency Series JL (30-100KHZ)

Model	JL-5	JL-15	JL-25	JL-30	JL-40	JL-50	JL-60	JL-80
Input power desire	Single phase 220V 50/60HZ			3 phase 380V 50/60HZ
Oscillate power max	5KW	15KW	25KW	30KW	40KW	50KW	60KW	80KW
Max input current	20A	37A	24A	38A	48A	65A	80A	105A
Oscillate frequency	100-250KHZ	30-100KHZ						30-80KHZ
Cooling water desire	>0.2MPa 2-6L/Min ≤ 40°C						0.3Mpa≥6L/MIN ≤ 40°C
Duty cycle	100%	100%	100%	100%	100%	100%	100%	100%
Net weight	19kg	21kg	28kg	25kg/23kg	35kg/30kg	45kg/30kg	50kg/30kg	80kg/85kg
