Paper Cup Flexo Printing Printer with Slotter Die-Cutting Machine

Product Description

Product Description Machine Introduction:

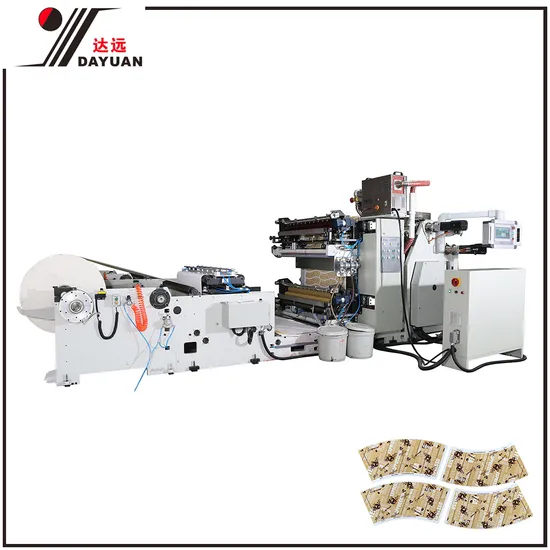

DAYUAN CCY1080/4-A flexographic printing and die-cutting machine is specially designed for the paper cup manufacturer,this machine includes 4 colors flexographic printing unit and die-cutting unit,higher printing accuracy,high speed of die-cutting,automatic waste cleaning, human cost saving, all these advantages would become the prior choice for the paper cup manufacturer.
The machine adopted Rexroth servo control system and frequency converter,Siemens PLC, the main electrical components are all adopted from the top brand, which determined the machine runs in stable performance and high efficiency.
Brief Description
1)Feeding Unit
Roller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding smoothly and accurate.
Left and right side baffle (computer touch screen control),the block box adopt electric adjustment,front baffle gap manual synchronous adjustment ,said baffle equipped with pneumatic line device,make the paperboard transverse positioning more accurate.The main engine adopts frequency conversion control,start and operation smoothly,saving energy can reach 30%.
2)Printing Unit
With the pedal switch electrically control the printing roller to run clockwise or anticlockwise, we can have the printing plate quickly changed. .Each unit uses electric to separate and combine,pneumatic locking,pneumatic lift plate,automatic ink distributing,pneumatic brake fission positioning. When the printing unit iS open and being washed, the cylinder will brake all the gears and keep them in the original location.The machine transmission uses cross slide block structure,adopts free key connection,remove the link clearance,operate smoothly.
3)Die cutting Unit
die cutting roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.(Optional:free plate die cutting slotting steel knife mold,do regular box slotting,the use of the corner cutting has box height synchronous adjustment function)
Die cutting roller phase and axial adjustment,the phase adjustment adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment,the axial transverse adopt PLC touch screen and electric digital adjustment.,the total adjusting range is ±15mm.
Specification Machine Specification

Machine Name	flexographic printing and die-cutting machine
Machine Model	CCY1080/4-A
Voltage	380V/50HZ
Total power	18KW
Roller Maximum Diameter	1500mm
Roller Maximum width	1080mm
Roller Maximum Thickness	80-400gsm
Punching tolerance	±0.25mm
Maximum punching area	1060mm x 520mm
Maximum punching speed	up to 250 stroke/min
The minimum quantity of cylinder gear	Z=110
The Maximum quantity of cylinder gear	Z160
Metric cylinder perimeter	345.5752-502.6548mm(CP= π)
British cylinder perimeter	349.25-508mm(CP=3.175)
The maximum printing width	1050mm
The size of the machine	6m x 1.5m x 2m
The weight of the machine	8T
Running speed	60m/min
Standard configuration	1.automatic web guiding system; 2.Tension control system; 3.Hydraulic Lifting devices; 4.De-culing system; 5.Color mark tracking system.

Detailed Photos
Mould And Sample( We can free provide if needs)
Company Profile Dayuan Industrial Co. Ltd
is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers".Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.
At the beginning of 1990s, the production of snack boxes(such as ice cream paper cone, hamburger box, etc) mainly relies on manual operation or machines imported from European and American countries. The poor sanitation condition and product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricts the development of domestic paper production enterprises. With rapid development of Chinese national industry, Dayuan determinedly enters this completely new industry.
Shipping And Packaging

Shipping	By sea,or as your requirement to do
Packaging	By Strong Wooden Case
Packaging Dimensions	Will be confirmed before booking or shipping

FAQ Q:Are you a factory or a trading company?
A: Our company is specialized in manufacturing machinery more than 20 years.
Q. Can your product be customized?
A: Yes,we can design and customize according to the requirements of customers.
Q: How does your factory control product quality?
A: we always adhere to the "integrity-based, integrity-based" business purposes,adhering to the "pioneering spirit, strives for realism the innovation, enterprising,strives for perfection" spirit of enterprise, the production of the product specification is complete, the appearance is beautiful and easy, the machine type to be complete,can satisfy the requirements of different customers.
Q: Does it easy to operate and what can i do if it doesn't work?
A: First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.
Q: If the machine's spare parts broken,where can I get ?
A: We will give you the spare parts which is vulnerable,and some criticalbparts,in case it broken within one year,we will send you for free.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight .

---
