CE Approved New Wood Carving Engraving Woodworking-Engraving-Machine Machines Router Machine CNC Lathe Zd1325

Product Description

Product descriptions from the supplier Overview

ZD1325 Electric Wood Router Other Woodworking Machinery

ZD1325 Electric Wood Router -Adopt the gantry structure, the guide rail support surface is stable, the rack drive mode, the transmission is stable, guarantees the long time high speed movement does not deform, does not shake. The linear guideway and y axis are driven by double motors, which have large bearing redundancy and long life. Using double rack transmission, the operation is simpler and the design is more humanized. A variety of software compatible, compatible with type3/artcam/castmate/ carved / Wentai and other design and production software. Product Specifications

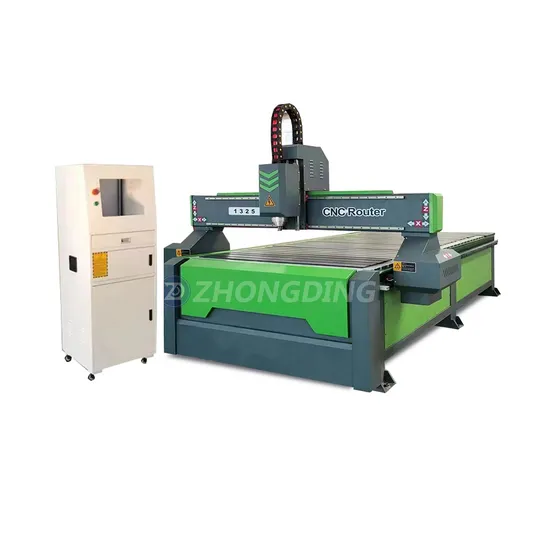

1325 CNC router
Model	1325
Working size	1300x2500mm
Working height	200mm
Running speed	0-18m/min
Processing speed	0-10m/min.
Drive way	Changzhou Anhao 450B Stepper Motor
Drive	Shenzhen Thessai 860 stepper driver
Spindle motor	3.2kw water-cooled variable frequency spindle
XY axis guide and transmission	20 linear guideway, high precision rack drive
Z axis guide and transmission	20 linear guideway, original tbi ball rod transmission
Voltage	220V/50hz(380V/50Hz)
Supported formats	*nc,G code,*uoo,*mmg,*plt
Control system	NCstudio
Oil lubrication	Manual oiling
Control cabinet	Independent control cabinet

Product Details
Application
Exhibition
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate. FAQ

---
