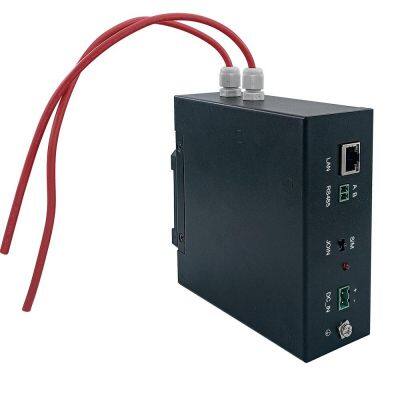

High Definition-Power Line Communication KS700M4P

Product Details

Product Description

Product Description
High Definition-Power Line Communication KS700M4P
Products Features:
●Wider operating voltage range, support DC12-36V power supply.
●The power supply port and PLC channel port adopt the fool-proofing design.
●Enhanced high voltage isolation protection, stronger anti-interference.
●Improved surge protection, higher reliability.
●It is suitable for power line carrier communication below 1200 V. The power line can be AC, DC and uncharged.
Technical data:

Classification	Technical indicators
Power supply	DC 12-36V
PLC Signal port	Voltage 0-1200V any two core cable，power line，slip touch cord，slip ring cable etc
Modulation type	OFDM modulation type
Carrier frequency	2～28 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	Maximum transmission distance：Point-to-point 500 meter class 10 relay 3-5 kilometre
RS485	Support Modbus RTU protocol, baud rate adjustable from 1200~115200bps.
Data delay	Within 10ms
Packet loss probability	Less than 0.1‰
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Modbus-TCP， IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1， IEEE 1900，IEEE 1901etc
Way of encryption	AES-128bit
Multicast	Support IGMP multicast protocols,The maximum number of nodes is 128
Exterior dimensions	Size：11012520mm(No enclosure size)（LWH） Weight：350g Install：Earhook
Environmental requirement	Operating temperature：-40℃～85℃ Operating humidity：20%-95%（No condensation） Storage temperature：-40℃～85℃
Working time	Industrial grade, supports 7*24 hours all-weather work

Exterior dimensions:
The PLC’s length, width and height are：129*126*50mm(no terminals included)，
TS35 guide rail mounting method.
Applications:
It has been mainly used in power carrier communication scenarios, such as mine communication system,
oilfield collection platform,substation, photovoltaic new energy and so on.
