Product Description
Product Description

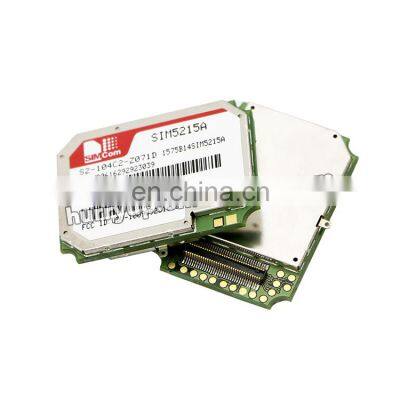

Description• The SIM5215 series is a Dual-Band WCDMA and Tri-Band GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.• With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. Its unique camera/video call feature shall add value to security solutions. • It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.General features * SIM5215A:Dual-Band UMTS/HSDPA 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz* SIM5215E:Dual-Band UMTS/HSDPA 900/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800MHz* SIM5215J: Dual-Band UMTS/HSDPA 850(800)/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz * GPRS multi-slot class 12* EDGE multi-slot Class 12* WCDMA 3GPP release 5* Output power- UMTS 1900/850: 0.25W - UMTS 2100/900: 0.25W - GSM850/GSM900: 2W- DCS1800: 1W- PCS1900: 1W * Control Via AT Commands* Supply voltage range: 3.3V~ 4.2V* Operation temperature: -30 °C to +80 °C* Dimension: 36mm × 26mm × 4.7mm * Weight: 7gSpecifications for Data transfer* WCDMA- Max.384Kbps(DL), Max.384Kbps(UL)* EDGE- Max. 236.8Kbps(DL),Max.118Kbps(UL)* GPRS- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)* CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6KbpsData transmission WCDMA- Downstream rate up to 384Kbps- Uplink rate up to 384Kbps* EDGE- Downstream rate is up to 236.8Kbps- Uplink rate up to 118Kbps* GPRS- Downstream rate is up to 85.6Kbps- Uplink rate up to 42.8Kbps* CSD- GSM data transmission rate 14.4Kbps- WCDMA data transmission rate 57.6KbpsCSD* Support GSM and WCDMANetwork Identification and Time Zone (NITZ)* Support GSM and WCDMAVideo telephony features* DTMF on H245* Support standard 64kbps circuit domain video phoneOther features* USB driver support: Microsoft Windows 2000/XP/Vista* USB driver supports Linux 2.6.16* Update firmware via USB* MMS*TCP/IP* FTP/HTTP/SMTP/POP3* FOTAUSB AudioSpecifications for SMS* Point-to-point MO and MT* Text and PDU modeInterfaces* USB2.0* UART* USIM card* ADC* Digital camera interface* GPIO* I2C* Micro-SD cardWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
