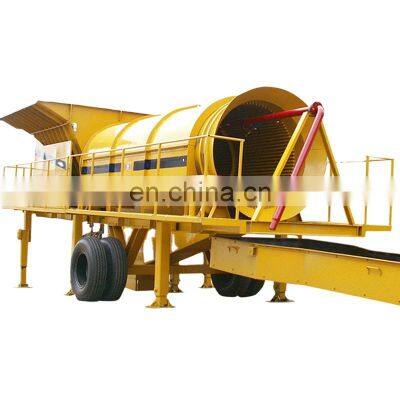

GTX1030 series gold trommel wash plant

Product Description

Product Description
The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the
taaarget mineral is released.
The material is then screened through the rotating screen and waste is ejected.
The screened material is then passed on to the concentrating modules for upgrading.
Model
Drum Dimension
(mm)
Screen Size
(mm)
Rotate Speed
(r/min)
Feeding Size
(mm)
Water Consumption(m3/h)
Capacity(t/h)
Power
(KW)
Weight
(t)
GTX1030
Φ1000×3000
≤20
27.9
≤80
1
40
15
3.8
GTX1230
Φ1200×3000
≤25
27.6
≤100
1.3
70
22
4.7
GTX1430
Φ1400×3000
≤25
27.6
≤100
1.5
80
22
4.9
GTX1545
Φ1500×4500
≤25
21
≤160
1.7
120
30
6.9
GTX2265
Φ2200×6500
≤50
19
≤230
1.8
180
37
15.9
