Poultry Farm Ground Feeding Equipment for Broiler Breeder

Product Description

1.Nipple drinking system poultry drinker

Advantage:The system provides clean and fresh water to each drinking line steadily, the water will be out when chickens touch nipples.
poultry nipple drinker Color: Red/Yellow
poultry nipple drinker Cup Style: Double/Single Arm
poultry drinker Nipple Material: 34# Stainless Steel
poultry drinker Cup Material : 100% PP Made
poultry nipple drinker Cup Height: 10cm
poultry nipple drinker: Never leak, save water

•Use : layers , broilers , chicks , breeders
•Material : high quality plastic coat outside , stainless steel inside
•Color : red , yellow
•Lifespan : more than 20 years

Conventional parts as below:

Name	Features
Water front system	Front system is the controller of water, and it includes below parts: Pressure regulating value: to make sure supply enough water. Filter: clean water and avoid blocking nipples. Water meter: to measure usage amount of water. Doser(Medicator): adding medicine to drinking system.
Pressure regulator	Regulating stability; High switiching performance
Nipple drinking line	PVC pipe, 12 or 15 nipples/3m; 8-12 broilers/drinker
Water display level tube	Use transparency and impact-resisting material to abserve water level conveniently.
Lifting and suspension system	Adjusting the drinking line height by winch.

2.main feeding line:
Feed can be conveyed from silo/manpower hopper into each feeding line hopper.
There is one feed sensor at the end of main feed line, which controls on/off of the motor automatically to achieve the aim of automatic feeding.
The system can reduce the labor intensity effectively, one farm just need one worker.
3. Pan feeding system 1.Individule feeding pan has 16 grids which is suitable for high density of chicken raising and saves costs .
2.Higher capacity for feeding chicken which is about 60 % higher
3.Smooth feeding edge which avoid damages to chickens and lower waste of fee
4.ventilation system and cooling system:

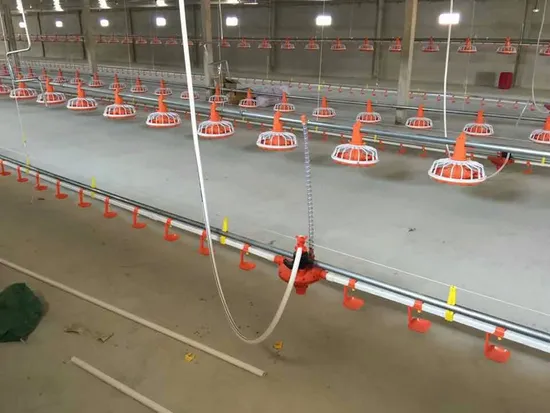

Case show:
Other poultry house equipment we can supply:
1.Main feed line system
2.Automatic pan feeding system
3.Automatic nipple drinking system
4.Ventilation system
5.Cooling pad system
6.Environment control system
7.Foggy system
8.Heating system
9.Plastic Products
10.egg incubator

---
