680mm Medium Pressure (1.6MPa≤ p< 10.0MPa) Sefic Packed by Pallets, Wrapped PVC Hexagon LPG Cylinder Scale

Product Description

LPG parameter table:

Type	Outside diameter Of the body(mm)	Water Capacity(L)	Height(mm)	Max. Filling Gas Weight(kg)	Design wall Thickness(mm)	Outside diameter Of the base(mm)	Outside diameter Of the shroud(mm)	Working Pressure(MPa)	Test Pressure(MPa)
LPG-3kg-01	190	6	235	3	2.3	190	-	2.1	3.2
LPG-5kg-01	200	12	430	5	2.3	200	162
LPG-5kg-02	230	11	355	5	2.3	190	-
LPG-6kg-01	302	13	295	6	2.3	302	302
LPG-6kg-02	294	13	288	6	2.3	302±3	265±1
LPG-10kg-01	320	23.5	526	10	2.9	240	190
LPG-11kg-01	300	24	595	11	2.9	300	190
LPG-12.5kg-01	294	26.5	582	12.5	2.9	300	220
LPG-15kg-01	320	35.5	665	15	2.9	298	220
LPG-15kg-02	314	35.5	680	15	3.0	300	230
LPG-15kg-03	320	35.5	680	15	3.0	240	190
LPG-20kg-01	320	47	833	20	3.0	240	-
LPG-20kg-02	300	47.7	903	20	2.9	300	190
LPG-48kg-01	407	113	1160	48	3.5	400	230

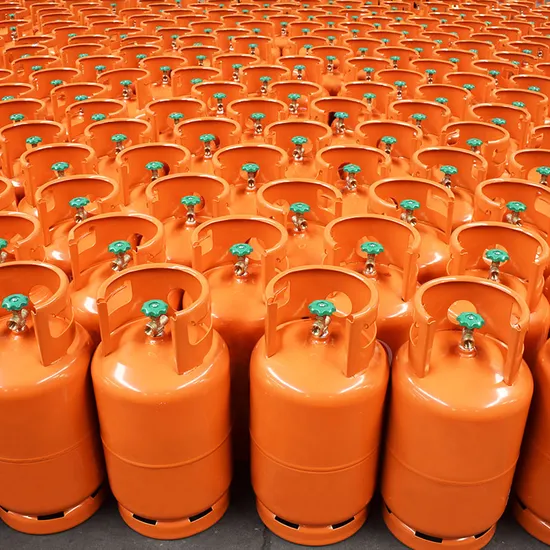

LPG Gas Cylinder Picture:
LPG Valve:

LPG Cylinder Production Lines:
Company Information:
Creative and Trustworthy Company: Located in Shanghai, SEFIC is one of professional suppliers of gas equipment such as gas cylinders, storage tanks and gas filling stations and affiliated equipment parts such as gas cylinder valves, tulip caps and steel pipes. We have many years' experience in gas industry and have received a good reputation in this field. Our products have been exported to many countries such as U. S. A. And European countries and enjoy popularity all over the world.
Quality and Security System:
We have implemented strict complete quality and security control system, which ensures that each product can meet the quality and security requirement of our customers. We have been adopting the advanced science and technology to produce gas cylinders and affiliated equipment since our company is established. In addition, all of our products have been strictly inspected before shipment.
We Are Reliable Partners!
We are dedicated to realizing the largest profit for both our clients and ourselves. We have been making great effort to achieve this win-win project and sincerely hope we will have long-term partnership in the soon future!
All clients are welcome to our compy for visit!
Manager: David

ADD: NO. 6598., Hutai Road, Baoshan district Shanghai, China 201908

---
