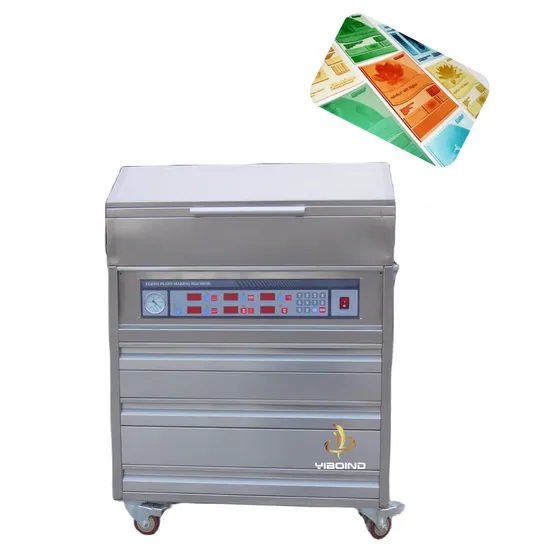

Photopolymer Flexo Plate Making for LED Exposure and Stickness Removing Machine

Product Description

Product Parameters
Characteristics
1. It is made of stainless steel, featuring in durability and won't get rusty.
2. Opted imported Philip specific printer lamp, Philip rectifier(frequency transforming
type is good for registering).
3. Lmported slow reflective violet suction membrane(Japan Toyo)
4. Computer controller enables it to be easily operated.
5. Adopted American digital intergrated thermo sensor.
6. Adopted American thermo sensor.
7. Japanese Panasonic or oriental printing plate washer, Japanese ORIX constant dry
oven, featuring in strong wind.
8. Adopted Philip specific UVC light source for removing the sticking sheet.
9. Integrated exposure, washing printing plate and removing sheet, it is a good
equipment for making soft printing plates
Main Technical Variables

Model	Printer area	Measurement:w*d*h	power	Weight
YB-600	600*400mm	860*710*1050mm	2.3kw	150kg
YB-800	800*600mm	1090*910*1150mm	3.5kw	220kg
YB-900	900*600mm	1190*910*1150mm	3.7kw	260kg
YB-1000	1000*600mm	1290*910*1150mm	3.8kw	300kg
YB-1200	1200*600mm	1490*910*1190mm	3.9kw	360kg
YB-1210	1200*1000mm	1490*1310*1190mm	4.2kw	460kg

Detailed Photos
Packaging & Shipping
Certifications
FAQ
Q:Are you factory or trading company?
A: We are factory and manufacture.

Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.

Q:How to place my order?
A: Just contact our Trader Manager, E-mail,WhatsApp,Skype or telephone to confirm the product, make the deposit then we will start to manufacture.

Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.

Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.

---
