Marine Hydraulic Deep Well Cargo Pump System for Chemical Tankers

US$30,000.00-880,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YQB
Max.Head
110m-150m
Max.Capacity
1000m3/H
Driving Type
Hydraulic
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps
Mounting
Submerged
Feature
Hydraulic
Casing
316L
Certificate
CCS, RS, Rina,BV,ABS..
Transport Package
Plywood Box
Specification
China Stanard of ship design
Trademark
HUANGGONG
Origin
China
HS Code
841370
Production Capacity
500PCS/Year

Product Description

China Huanggong Machinery Group Co.,Ltd.
--------Specialist in marine pump industry for over 40 years.

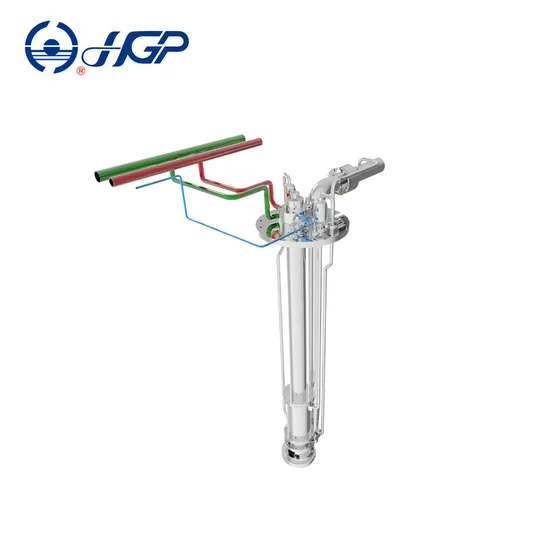

---------We are China first designer and manufacturer of Hydraulic submerged cargo pump system General Huanggong Hydraulic Deep Well Cargo Pump System YQB consists of Hydraulic Station, Deep Well pump and Control Device. Hydraulic Station, installed in engine room, provides hydraulic power to all of the cargo pumps in vessel. Deep Well Pump(one pump per tank), built on deck, is submerged to the bottom of the cargo tank and is driven by hydraulic motor. Control Device, installed in the Master Control Room, controls the output flow of Deep Well Cargo Pump and monitors the running of the system. The capacity of the pump can be controlled not only by Remote Control in master Control Room, but also by manual Control on the deck.
The system is produced in accordance with RULES FOR THE CONSTRUCTION AND EQUIPMENT OF SHIPS CARRYING DANGEROUS CHEMICALS IN BULK China's Standard of Ship design.
Material
GB1221 AISI Application
OCr18Ni9 304 Vairous organics & salts
OCr17Ni12Mo2 316 Various organics, weak acides,mild base and salts
OCr17Ni14Mo2 316L Moderate-erosion acids & alkalis
