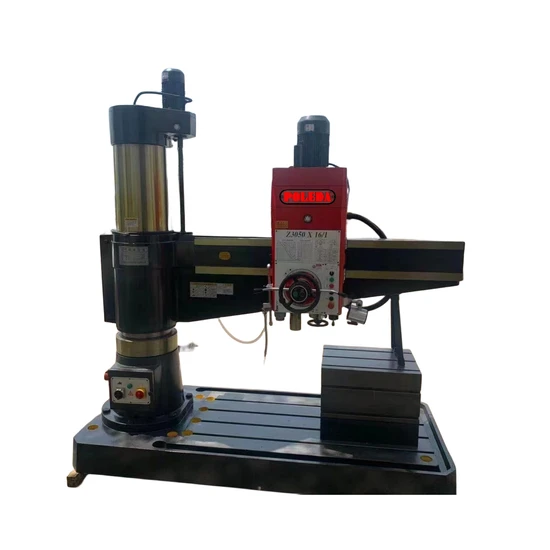

Z3040 Semi-Automatic Radial Drilling Machine with High Efficiency and High Precision

Product Description

Product Description
Rocker Arm Drill Product Introduction
The Radial Drilling Machine is a versatile hole-processing marvel, designed to handle tasks such as drilling, reaming, tapping, and surface trimming with finesse. This machine shines in both single and mass production, effortlessly managing the processing of large, porous components. A staple in any general machining workshop, its standout features include:
Structural Features: The rocker arm elegantly rotates and ascends around the column, while the spindle box glides horizontally. This ingenious design grants the radial drilling machine unparalleled ease of operation, flexibility, and adaptability when working with large and heavy workpieces.
Classification: Based on the machine tool clamping structure, radial drilling machines are categorized into hydraulic and mechanical types. Further subdivided by drilling size and mechanical principles, these machines come in a variety of models and specifications, catering to diverse processing demands.
Technical Parameters: Key technical parameters include the maximum drilling diameter, the spindle-to-column distance, the spindle end face-to-working table distance, and the spindle's rotational speed. These critical specifications define the machine's machining capability and operational efficiency.
Safety Performance: Our radial drilling machines boast meticulous safety features, including spindle overload protection devices, travel limit switches, and safety nuts for lifting screws, all ensuring a secure and risk-free operation.
Application: Radial drilling machines are indispensable across various machining sectors, performing tasks from drilling and reaming to countersinking and boring. They are essential, versatile equipment in both machining and production settings.
Operation and Maintenance: Offering both manual and numerical control operation modes, these machines utilize mechanical and hydraulic transmission. Proper operation and diligent maintenance are key for optimal performance and longevity of the machine.
In summary, the radial drilling machine stands as a multifunctional, efficient, and safe hole-processing solution, excellently suited for manufacturing a wide array of metal parts, making it an invaluable asset in modern machining workshops.
Product Parameters
Rocker Arm Drill Product Performance
Our new series of radial drilling machines epitomizes multifunctionality, boasting outstanding performance, safety, reliability, and ease of maintenance. With high precision, robust rigidity, and long service life, these machines incorporate hydraulic primary variable speed mechanisms that minimize auxiliary time, enabling swift spindle operation (including stop, reverse, and braking). The spindle box, rocker arm, and columns are secured by a hydraulic-driven diamond block clamping mechanism ensuring steadfast clamping. The rocker arm guide rail, outer column cylindrical surface, spindle, spindle sleeve, and column raceway are all hardened, maintaining the machine's precision and extending its lifespan. Complementary safety and external column protection devices guarantee secure operation.
Classified by their clamping structure, radial drilling machines are either hydraulic or mechanical. The hydraulic variant offers exceptional operational dexterity and a wide application range, particularly suited for processing porous large parts in both single and mass production settings-a ubiquitous machine tool in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm
