Good Quality Maize Degerminator Corn Peeler Maize Peeling Machine

Product Description

Good Quality Maize Degerminator Corn Peeler Maize Peeling Machine
Product Description

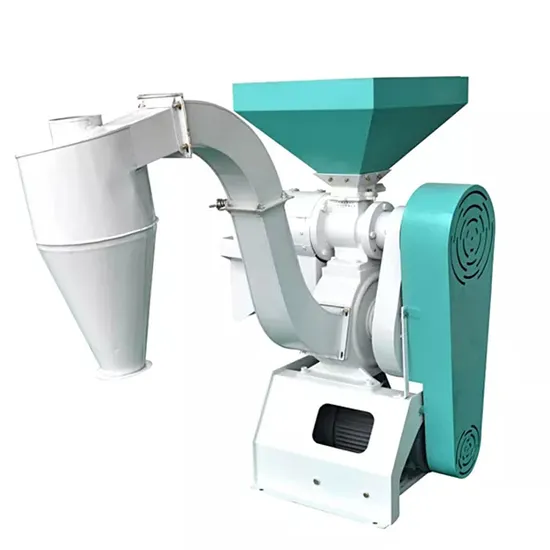

The NF series of debugging-free air-jet Corn degeminator machine are carefully designed by our company's scientific and technical personnel on the basis of the original iron roller rice mill through extensive market research. We could also call it "corn polisher","corn peeling machine","corn hulling machine". The corn degeminator could remove corn skin and corn germ to get big corn kernels for further corn processing in small scale corn mills. The germs could be separated and collected through our other corn germ extractor machine if required. The maize degeminator can be used as a stand-alone machine, or as a supporting equipment for a combination corn hulling and milling machine or a complete set of corn or posho mills. At the same time, because the fine bran is collected by the bran collector, the working environment is clean and the dust concentration is low.
Stucture of Maize dehulling Corn degeminator machine The Corn degeminator is mainly composed of a hopper, a main shaft, a grinding roller, a screw propeller, a milling chamber, a turbine box, a rear seat, a base, etc. The structure is shown in below.

1. Main shaft pulley	2. Bearing	3. Hopper	4. Bearing gland
5. Screw propeller	6. Bushing	7. Large gear ring	8. Hulling chamber frame
9. Rice sieve frame	10 meters sieve	12. Rice roller	13. Rice outlet
14. Screw plug	15. Separation chamber	16. Pinion	17. Chaff suction device
18. Front seat	19. Turbine box	20. Base	21. Air jet impeller
22. Rear seat	23. Air jet bearing seat	24. Fan pulley	25. Tightening bushing

Working principle of Maize dehulling machine maize polisher After the raw grain enters the hopper, it advances along the shaft under the action of the screw propeller, and enters the corn degeminator chamber. Due to the resistance of the outlet pressure door, pressure is generated between the corn grains and rubbed against each other under the action of the roll ribs. The corn grains reach the required precision. Then it flows out from the corn kernel outlet. At the same time, the high-pressure wind generated by the high-pressure fan is sprayed into the corn degeminating chamber through the gap of the corn grinding roll, which strengthens the whitening effect of the corn kernel and takes away part of the heat generated during the corn milling process. Under the action, it is discharged out of the machine and collected by the collector to obtain bright and clean low-temperature finished corn kernels.
Features of NF series of Corn degeminator machine Affordable price suitable for new small to medium scale posho mill starters Simple and beautiful in appearance convenience in operation and maintenance lower chamber temperature during working to ensure final corn products quality Durable structure with longer use life Product Parameters

Type	Capacity(kg/h)	Power(kw)	Spindle speed(r/min)	Blower speed(r/min)	Weight(kg)	Dimension(mm)
NF90	300-500	3-7.5	940-1000	4200-4400	120-180	1000x400x1200
NF115	1000-1500	11-15	940-1000	4200-4400	240	1050*1020*1150
NF150	1500-2000	18.5-22	940-1000	3000-3050	320	1189*1020*1430

Detailed Photos

Packaging & Shipping

Customer Visiting

Flour Milling Machines
Grain Machine Workshop
