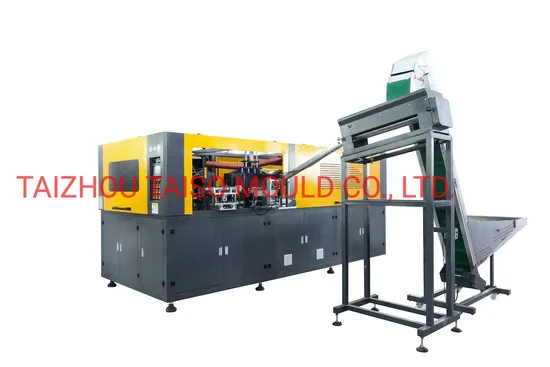

High Quality Small Water Bottles Automatic Blow Moulding/Molding Machinery/Machine with Servo Motors

Product Description

Features
Apply to 100ml-0.6L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc
-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem
-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain
-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding
Technique Parameter of blow molding machine:

ITEMS	Unit	TS-A2-2L	TS-A4-06L	TS-A4-2L	TS-A6-06L	TS-A6-2L	TS-E6 (All servo)	TS-E8 (All servo)
Number of cavities	cavities	2	4	4	6	6	6	8
Max. volume	L	2	0.6	2	0.6	2	0.6	0.6
Neck size	mm	18-38	18-38	18-38	18-38	18-38	18-38	18-38
Max. Bottle dia.	mm	103	68	103	68	103	68	68
Max. Bottle height	mm	340	240	340	240	340	240	240
Theoretical output	bph	1800-2400	4500-5000	3800-4500	6500-7000	5000-5500	8000-8500	10000-11000
Rated power	kw	35	35	46	72	56	76	100
Power consumption	kw	12-20	15-20	20-25	25-30	30-35	28-35	45-52
Main machine size	m	2.7*1.8*2.1	3.3*1.85*2	4.5*1.9*2.1	4.5*1.9*2	5.3*2.1*2.1	4.5*1.9*2.3	5.5*2.15*2.3
Preform loader size	m	1.9*1.2*2.4	1.9*1.2*2.4	1.9*1.2*2.4	2*1.3*2.4	2*1.3*2.4	2*1.3*2.4	2*1.3*2.4
Weight	kgs	3500	4200	5200	5000	5800	5000	6200

---
