Open End Spinning Cotton Yarn/ Wool Yarn Making Machine / Open-End Spinning Machine for OE Yarn Hosiery Knitted Yarn Rotor Spinning Machine Production Line

Product Description

Brief introduction:
1, Application

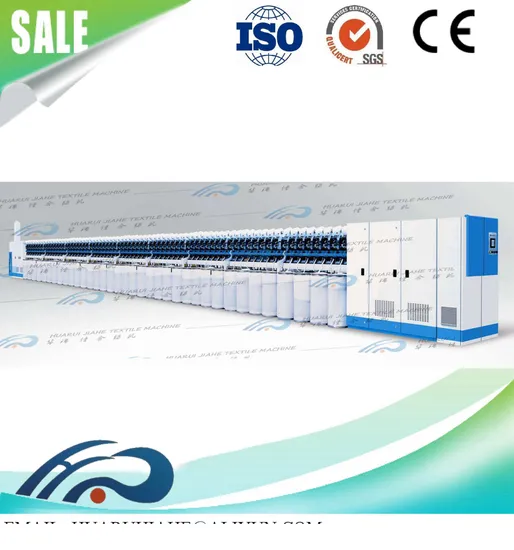

HR1603 Rotor Spinning Machine is a high speed and efficiency spinning machine which have automatic exhaust system.This equipment can spin directly 5000-2200Tex (0.2-0.45 metric) to 100-14.7Tex (10-68 metric) yarn.Material is cotton,wool,viscose and fiber blending.This machine can be equipped with Czech -RN or SN spinning organ.
The suitable air conditioning requirements for the spinning process are: room temperature 18-25 degree, relative humidity 60-70%.
2, Main Feature
1, PLC control, Stable running and long service life
2, This machine adopt new techniques such as the new type suction spinning unit and the horizontal
automatic piecing device,resulting in the maximum speed of the spinning units at 100000 r/min
3, One can put shaping or select the toper tube for use for the parallel tube
4, Furnished with the collection of the device semi-automatically, improve efficiency of connecting
5, Furnished with and fall one suck yarn device, in full yarns fall one produce and stay tail yarn,
make the yarn able to retreat and wind in succession
6, Good operation interface, control and display every technology parameter in real time
3, Parameters:

1.Guage(mm)	200
2.Number of unit	120(total length 15905),168(total length 21020),192(total length 23580),216(total length 26465),240(total length 29105)
3.Rotor speed(rpm)	30000-65000(design speed)
4.Rotor diameter(mm)	φ43,φ54,φ66
5.Combing roller speed(rpm)	5200,6200,6700,7200,8200
6.Drafting ratio	35-223
7.Sliver count	0.2-0.45Nm(5000-2200tex)
8.Take-up speed(m/min)	33-90
9.Can dimension(mm)	φ250*900,φ300*900,φ350*900
10.Tube dimension(mm)	φ56*φ50*170(flat can)
11.Package dimension(mm)	φ300*500(flat can)
12.Package weight(kg)	about 4(flat can)
13.Total power	Rotor driving:2*11kw Combing roller driving:2*4.5kw Fan for mourity discharge:4kw Conveyor belt drive:0.4kw(with reducer) Feeding drive:0.75kw Delivery drive:4kw

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

---
