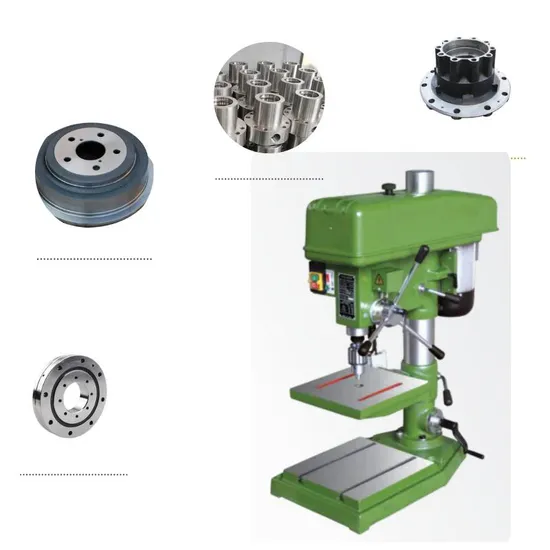

Drilling & Tapping Machine Zs4120 Zs4125

Product Description

Drilling & Tapping Machine ZS4120/ZS4125
Specification:

Model No.	ZS4120
	ZS4125
Item No.
Moving
Max.Drilling/Tapping capacity	D:20/T;M20/M16
	D:25/T;M24/M20
Diameter of column	85 mm
Spindle
Spindle travel	125 mm
Distance spindle axis to column generating line	240 mm
Max.Distance spindle nose to table	297/367 mm
Max.Distance spindle nose to base	560/630 mm
Spindle taper	MT2/MT3
Spindle speeds range	290~2150 r/min
Spindle speeds series	5
Dimension of work table surface	280x300 mm
Dimension of base	590x375 mm
Other
Overall height	1127 mm
Powerof motor	750/1100 w(6P)
G.W/N.W	165/140 kg
Packing dimension	82x48x102 cm

Specification:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
