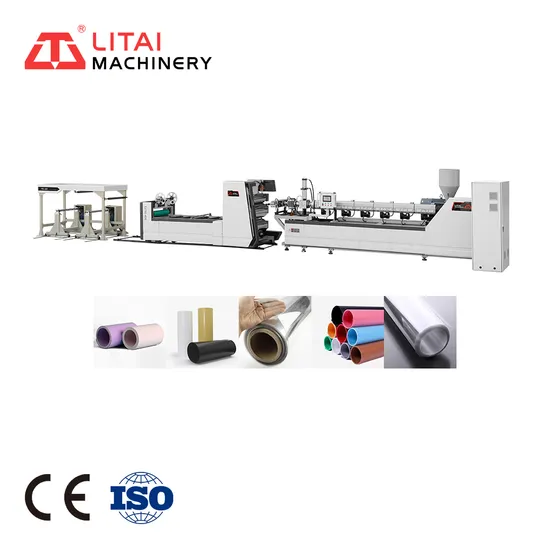

Fully Automatic Hydraulic Drive Role Sheet Machine Equipment Production Line for PP Pellet and Heat Cup

Product Description

Product Parameters

Technical Parameters
Model	TJ-750C	TJ-750D
Suitable Sheet	PP,PS
Sheet Width (Max.)	750mm	770mm
Sheet Thickness	0.3-2.0mm
Screw Rod Dia	125mm	110mm
Screw L/D Ratio	35:1	32:1
Max. Output	400kg/hour	240kg/hour
Main Motor Power	132kw	75kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L15388*W3615*H2900mm	L14000*W2600*H1800mm
Weight	About 12T	About 8T

Product Display
APPLICATION AREA
The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistanceforce in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.
SUMMARY OF MACHINE

1.The material of the screw and barrel is 38CrMoAlA, after nitriding treatment, the hardness is the best, the corrosion resistance is strong, and the service life is long.
2.T-die Design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.

3.FILTER PART: Worm-Gear Case: 1 pcs Filter Size: 300mm x 40 mm Net Dia.: Ф3-3.5mm Heating power: 7.2kw
4.Roller layout: According to the level type, each roller is arranged side by side. Cooling method: Since there are many trough irons inside each drum, a spiral method (not a linear method) is used to cool each drum.
5.Double working station is easy to receive sheet, if one roller is full, we can use another roller , and save time.
6.The scrap rewinder is used to rewind the scrap for recycling.

Company Profile
Long-term Cooperation Brand

Transport Packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

---
