Automotive Glass Ceramic for Side Window and Sunroof Glass

Product Description

Product description:
Enamel for side window and sunroof glass
(Oil-based, Water-friendly, UV medim system)

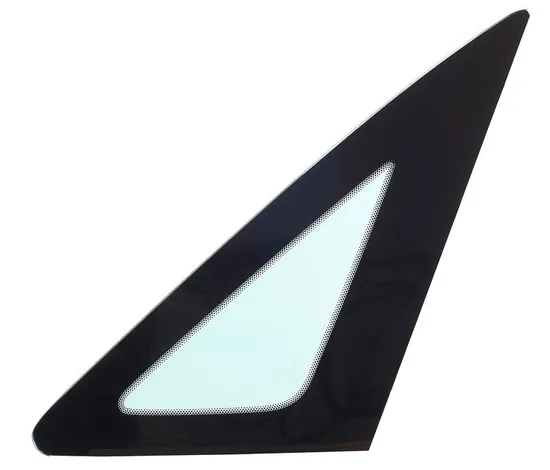

Applied on side window and sunroof tempered glass which meet ball drop test requirement.
USAGE:
Black enmael for auto tempered glass
This product is black pastes used as enamel for natural glass and float glasses. It have specialty that are good adhesive, smooth surface, alkalis and acid resistance. Mostly used as tempered glasses
General Properties as follows:

Item	Parameter
Color	Black
Solid content	78±3%
Paste particle	≤15 µm
Expansion coefficient	<85×10-7 /ºC
Viscosity	400±100 dPa.s/25±3ºC
Silk screen printing	180-250mesh
Screen printing temperature/humidity	25±2ºC/50±10%
Thickness of screen printing	20-25μm
Drying	150ºC/3-5min
Sintering/Firing	650ºC-730ºC/8-3min
Storage	12months(Room temperature)
Silk Printing Characteristics	Glossy/Matt

Company Introduction:
Shenzhen Octopus Technology Co.,Ltd was established in 2007. Our brand "OCTOPUS" is registered both in China mainland and Taiwan. Especially the Octopus glass enamel series is well known all over the industries. Guangdong Octopus Enterprise Co.,Ltd is a manufacturer belong to Shenzhen Octopus Technology Co.,Ltd. Factory locates in the Nansha Free Trade Area,Guangzhou.
By advancing apparatus and trained personal, we are reseraching and producing the brand "OCTOPUS" glass enamel and silver paste. All products carry a high opaque, acid resistance and rich color choice. We are also devoting to the thermal insulation and solar-radiation reduction paste, paste for heating coils function , silicon solar cell conductor AL and AG paste. Octopus care about the environmental protection and our future. Our products meet the EU's RoHS and REACH standards.
"Quality first, Customers first" is our motto. And we have got the ISO9001: 2015 QMS certification. All process of our production line is normalized and controllable. The outgoing quality rate of our products should be 100% to guarantee the best quality. Our high quality of products and service bring us the trust and faith of our customers.

Our products:
·Enamel for automotive glass (applied to car windshield laminated glass of face 2 and face 4, sunroof and side window tempered glass, rear window tempered glass which meet anti-sicking and hide silver paste) and silver paste.
·Enamel for color, frosting, skid proof and metallic architectural glass.
·Enamel for tempered glassware and pot cover.
·Enamel for appliance and furniture tempered glass and conductive silver paste.
·Enamel for heat-resistant and mechanical impact resistant tempered glass.
·Enamel for microcrystal plate glass and high borosilicate glass.
·Ink for low temperature glass and mirror glass.
·Water-friendly and UV medium system color series enamel for tempered glass.
·Digital ceramic ink for tempered glass.
·Transparent, heat-insulation and radiation protection dielectric pastes for tempered glass.
·Color enamel for anti-counterfeiting glass, luminous glass and reflect light glass.
·Heating plate of tempered glass, heating pastes and electrode paste of solar cell.
Exhibition Show:
Our certificates:


Product packing:
Our partners:
FAQ:
Q: How to get a quotation?
A: We need to get specific details, such as( Automotive: for windshield laminated glass, side glass or backlite glass; order quantity; color; oil-based or water-based; leady or lead-free and so on)
Q: What's your payment term?
A: Our payment term is T/T in advance.
Q: What's your minimum order quantity?
A: 50KGS.
Q: Can you supply free sample?
A: Yes, we can provide the free sample 200g--500g, but you need to pay the freight. If you want us provide more sample you need to pay the cost of it.
Contact:
Guangdong Octopus Enterpeise co.,ltd
Add: NO.92 , Lanzhang Road, Lanhe Town, Nansha District, Guangzhou, China
Web:szoctopus.en.made-in-china.com
Thanks for your time. Any enquiry, please feel free to contact us.

---
