Mobile Diesel Engine Drum Wood Chipper

Product Description

Product Description

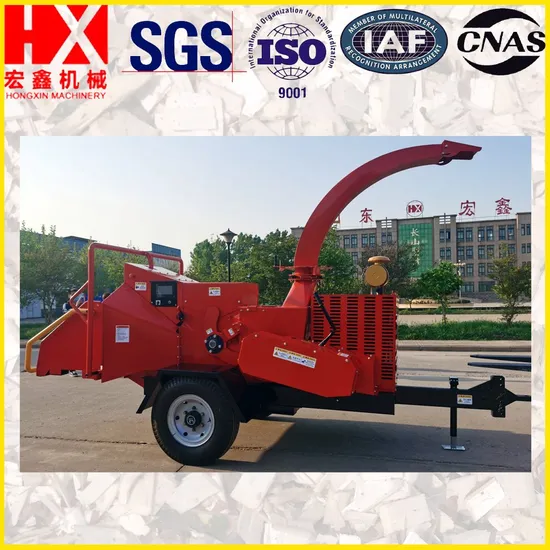

Brush chipper HXBC100 is an advanced material cutting equipment. This machine has advantages of many other wood chippers and is manufactured on the basis of shearing and cutting theory. When designing the machine, the engineer takes a full consideration of feeding system safety. Professional speed detecting and feedback system can reduce the pressure stress on the engine parts, and improves work efficiency of the operator. If the feeding material is too big or too hard, or the diesel engine is over load, this system will switch from continuous feeding to intermittent feeding automatically. If jamming occurs, the operator can control the machine manually and reverse the feeding roller. Besides, diesel engine waste gas is connected directly with chipping chamber, and this increases power of discharging.
Brush chipper HXBC1000 is mainly used for chipping logs, branches, undersized logs, wood cutting leftover, shrubs etc for preparing material in paper-making plant, density board plant and biomass power plant.
When the machine is at work, material can be chipped rapidly and effectively in the chipping chamber. The machine is featured by sturdy and durable, high production capacity, low energy consumption and uniform chipping quality, as well as low noise, no pollution, easy operation and easy maintenance.
Detailed Photos
Product Parameters

Model	HXBC1000
Dimension	4.3 x 1.8 x 2.8m
Weight	2.2t
Input gate size	137 x 81.3 cm
Input port size	44.5 x 38.2 cm
Rotor size	Diameter 540 x Height 500mm
Feed roller size	Diameter 500 x Height 450mm
Blade size	230 x 110 x 18mm
Blade type	2 cutting edge
Blade quantity	2 cutting + 1stationary
Feed plate length	1450mm
Power	Yuchai diesel engine 90kw
Max wood diameter	30cm
Feed speed	0-36 m/min
Feed system troque	548N.m
Feed gears	feed-stop-reverse
Main drive mode	belt drive
Feed method	Hydraulic motor
Discharge height	2.5m
Rotation speed	2050 rpm
Wokring mode	fixed, can be towed and move
Brake mode	air-operated
Start mode	electric
Voltage	12V
Tire	750-16
Fuel tank capacity	48L
Hydraulic oil tank capacity	61L
Display	Engine rotation speed, water temperature, engine oil pressure, electric quantity, fuel quantity, hydraulic oil quantity, working hours.
Safety device	Emergency stop handrail, emergency stop switch, rear indicator light.
Capacity	5-8TPH (15-25CBM/H)
Container loading	1x20'GP
