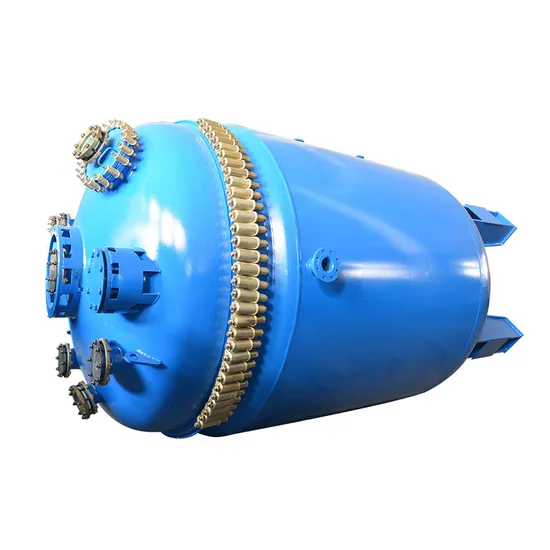

Supply Glass Lined Reactor 1000L Steam Heated Enamel Reactor Chemical Industry

Product Description

Product introduction
Open glass-lined reactor features: enameled reactor / glass-lined reactor by the pot, lid, stirrer, jacket, support and transmission devices, shaft sealing device, etc., materials and openings can be developed according to the user's process requirements. According to the heating form can be divided into electric heating enamel reaction kettle, thermal oil heating enamel reaction kettle, steam heating enamel reaction kettle, water heating enamel reaction kettle, and so on. According to the jacket form is divided into: jacketed enameled reactor and outer half-pipe enameled reactor, jacketed thermal oil heating type are equipped with infusion device. Enameled reactor stirrer form generally have paddle type, anchor type, frame type, screw bar type, scraping wall type and so on.
Product advantage
1.TK type glass-lined reactor is a separable cover-body combination reactor. The cover is fixed on the tank with clips and sealed by gaskets between them.
2. This specification section of glass lined reactor is generally applicable to small scale chemical process.
3. Since the cover can be integrated with the tank body and cannot be separated, this type of glass lined reactor is suitable for the environment of high pressure inside the kettle, which can avoid or reduce the leakage.
4. Due to the high quality enamel, combined with mature enamel technology, this type of open type glass lined reactor has significant corrosion resistance, impact resistance and resistance to temperature fusion and other characteristics, durable.
5. The production process of open type glass lining reactor adopts assembly line technology, quality.
6. This type of open type glass lining reactor adopts electric furnace firing, the porcelain surface is clean and should not be chipped.
7. The company owns the important technology of glass lining equipment production, complete specifications of electric furnace, enameling and burning without deformation.
8. After removing rust on the surface of glass-lined reactor, environmental protection water-based paint spraying, making the product more beautiful and generous.
9. We can design and manufacture all kinds of non-standard glass-lined reactor equipments according to users' needs. Technical parameter

Model		Tk-50	Tk-100	Tk-200	Tk-300	Tk-500	TK-1000	Tk-1500	Tk-2000	Tk-3000	T-5000	Tk-6300
Nominal Capacity(L)		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Capacity(L)		71	128	247	369	588	1250	1720	2160	3380	5224	6735
Heat Exchange Area(M2)		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13	16.4
Dimension (mm)	D1	500	600	700	800	900	1200	1300	1300	1600	1750	1750
	D2	600	700	800	900	1000	1300	1450	1450	1750	1900	1900
	D3	706	816	918	1028	1130	1468	1622	1622	1964	2152	2152
	H1	200	235	275	310	335	410	435	435	510	547	547
	H2	400	500	700	800	1000	1200	1400	1740	1735	2335	2875
	H3	300	320	350	350	400	500	500	500	600	670	700
	H4	945	945	953	1154	1154	1276	1276	1276	1326	1326	1457
	H	1800	1930	2180	2520	2750	3100	3310	3700	3800	4480	5160
Transmission type	Type	BLD-1	BLD-1	BLD-1	BLD-2	BLD-2	BLD-3	BLD-3	BLD-3	BLD-3	BLD-3	BLD-4
Speed of Agitators r/min	Anchor, Frame Type	63/85	63/85	63/85	63/85	63/85	63/85	36/85	63/85	63/85	63/85	63/85
	Turbine Type	130	130	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	80/vision	80/vision	125	125	150	300x400	300x400	300x400	300x400	300x400	300x400
	b	70	70	80	100	100	125	125	125	125	125	125
	C	70	70	70	70	70	100	100	100	100	125	125
	d	-	-	80	80	100	100	100	100	100	125	125
	e	70/lamp	70/lamp	70/lamp	70/lamp	80/lamp	100/lamp	125/lamp	125/lamp	125/lamp	125/lamp	125/lamp
	f	-	-	70	70	125	125	125	125	125	150	150
	g	70	70	-	-	-	100	100	100	100	125	125
	h	-	-	70/vision	70/vision	80/vision	100/vision	125	125	125	150	150
	Outlet	70	70	80	80	80	100	100	100	125	125	125
Jacket nozzle	inlet (outlet)	3-20	3-20	3-25	3-25	3-32	3-32	3-40	3-40	3-50	3-65	3-65
	Agitator Nozzle	-	-	-	-	-	-	2-50	2-50	2-65	3-65	3-65
Reference Weight(Kg)		350	410	640	920	1150	1820	2350	2600	3550	4670	5450
