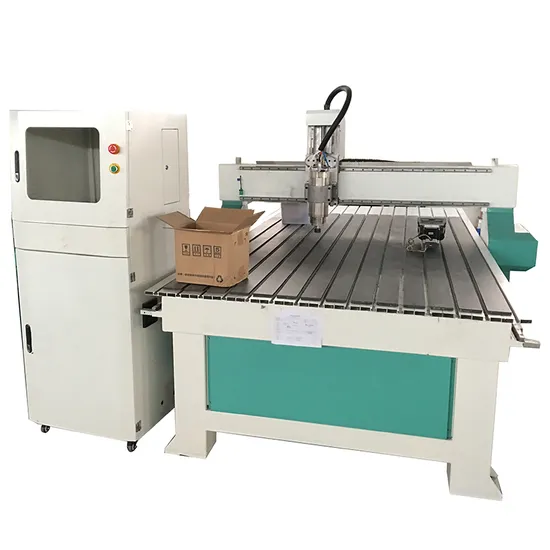

1325 CNC Router Machine for Wood

Product Description

Features:
Welded steel bed structure , when working its more stable. Alumiun T-slot table, fixing the materiales by clamps Air cooling spindel , can opstional with water cooling spindle TaiWan high precision HIWIN square liner guide rail, improving working accuracy. X Y transmissiom by helical rack Servo motor and DSP control system is optional
Technical parameters
Model Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area 1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy ±0.02mm
Lathe Structure T-slot seamless welded steel bed structure
X Structure Taiwan HIWIN square guide rails
Y Structure Taiwan HIWIN square guide rails
Z Structure Taiwan TBI ball screw
Max.Speed 0-30000mm/min
Max.Working Speed 0-25000mm/min
Spindle Water cooling spindle
Spindle Speed 600-24000RPM
Working Mode Stepper motor
Working Voltage 220V380V/3ph 50HZ/60Hz for standard machine
Command Code G code(*uoo,*nc,*mmg, *plt)
Operating System DSP control system
Interface USB
X,Y Working Delicacy <0.01mm
Software Type3 software or Wentai software
Running circumstance Temperature: 0°C~45°C
Relative humidity: 30%~75%
Waranty One year
Delivery time 2 weeks
Applied area:
1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.

2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.
3.Instrument industry: 3d curved surface, shape cutting.
Samples:
Packaging and shipping:

Technical support:
Warranty is 1 year 24 hour technical support by email or calling User-friendly english manual for machine using and maintaining Payment terms:
You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
