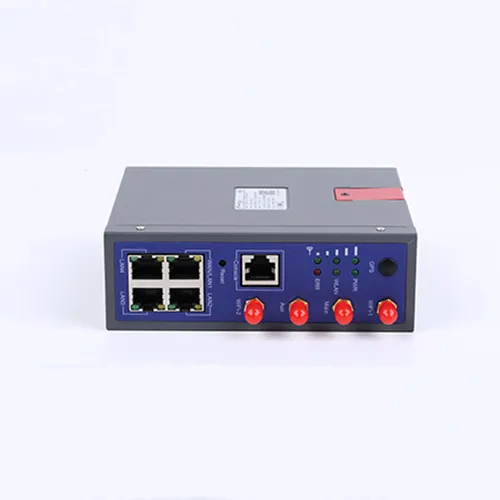

H51series Industrial Dual SIM Backup Wireless Router

Product Description

Product Description H21 Industrial 4G 3G Dual SIM LTE Router DIN RAIL MOUNT
H51series cellular router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.
This series of products use high performance industrial 32 bit communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, it's a wireless router with 4 Ethernet port RJ45 and 3 GPIO.
It can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Features:
Industrial robust design and compact metal housing
Strong electromagnetic interference Resistance, heat endurance and radiation ability
Support FDD/TDD-LTE 4G network, 3G and 2.5G backward compatible
Support multiple VPN (PPTP, L2TP, GPE, IPSec etc.)
Support multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
Support multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
2 Antenna interfaces, 1 GSM+ 1 Aux/Wi-Fi/GPS
4 Ethernets, 4 LAN or 3 LAN + 1 WAN
WAN port support PPPoE, static IP, DHCP client.
Built-in watch dog, Multi-link detection ensure working in stable and security way
Always online, reboot automatically if disconnected to ensure continual connection
Support APN and VPDN wireless private network access in
LCP/ICMP/flow/heartbeat check, ensure network usability
Web/CLI/SSH/Management platform support, easy configure
SNMP network management, NTP support
Local & remote management (configuration, status, upgrade firmware)
Supports Port forwarding and Bridge
Supports timing operation
Supports LED status indication
Shock and vibration resistant
Advanced:
MIMO Antenna for LTE 300Mbps optional
802.11b/g/n Wi-Fi optional, 150Mbps standard, 300Mbps optional
Dual-redundancy between WAN links: Ethernet, 3G/4G and Wi-Fi backup
GPS capability optional for fleet management or other tracking application
DTU serial communication function optional (rs232/rs485)
OpenVPN Optional
PPTP Sever optional
AT command optional
Control by SMS optional
Schedule reboot optional
Customized and OEM/ODM acceptable
Product Parameters

Cellular
4G(FDD LTE/TDD LTE)	AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)	850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz
2G(EDGE/GPRS/CDMA/EVDO)	850/900/1800/1900 MHz
Antenna Interface
Number of ports	1 or 2 (MAIN + AUX/WiFi/GPS)
SIM	1 or 2(3 V & 1.8 V)
Ethernet Interface
Number of ports	4 x 10/100 Mbps, 4 LAN or 3 LAN + 1 WAN
Magnet isolation protection	1.5 KV
Serial Interface
Number of ports	3 GPIO(2 RS-232 or 1 RS232 + 1 RS-485)
Baud rate	300bps to 230400bps
Software
VPN tunnel	PPTP/L2TP, IPsec, GRE, OpenVPN
Firewall	DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)
Management	Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional
Serial port	Transparent, TCP Client/Server, UDP, Modbus RTU
Others
Reset button	1 x RST
LED indicators	1 x PWR, 1 x WLAN, 1 x ERR, 3 x Signal, 4 x LAN
Power	5 to 32 V DC(standard 12V/1.5A)
Power consumption	Idle: 100 mA@12 V Data link: 250 mA (peak) @12 V
Housing & Weight	Metal(IP34), 500 g
Dimension	132 x 112 x 44 mm
Installation	Desktop, wall mounting and DIN rail mounting
Certification	CE, RoHs, FCC
