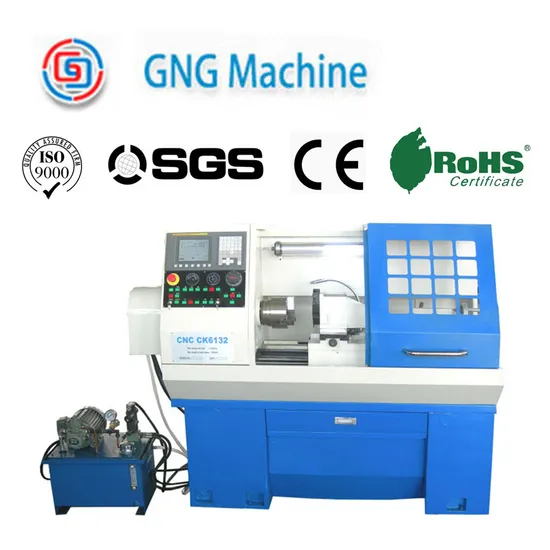

Precision High Quality Metal CNC Lathe

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Max. Swing Diameter: 210mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6132
Voltage: 380V
Power(W): 5500W
Dimension(L*W*H): 2230X1500X1750mm
Weight: 4000kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 223X150X175cm 4000kg
Delivery Detail: 30-45days
Specifications of CK6132: CNC Lathe
1) Maximum rotary diameter: Φ 360mm / 14.17"
2) Maximum diameter work-piece: Φ 320mm / 12.6"
3) Maximum diameter of bar stocks Φ 48mm / 1.89"
4) Maximum turning diameter of tool turret: Φ 150mm / 5.9"
5) Maximum length of workpiece: 450mm / 17.72"
6) Cut thread/thread cutting metric system: 0.25-12mm
7) English system/inch system thread/inch: 28--3 1/2
8) Center height of spindle(from guide way of lathe bed to centerline of the spindle): 180mm / 7.09"
9) Maximum rotate speed of spindle (stepless): 200-4, 000rpm
10) X axis maximum length of travel: 200mm / 7.88"
11) Z axis maximum length of travel: 500mm / 19.69"
12) Feed speed in axis X (step-less): 5-1, 000mm/min
13) Feed speed in axis Z (step-less): 10-2, 000mm/min
14) Fast motion speed in axis X: 6, 000mm/min
15) Fast motion speed in axis Z: 12, 000 mm/min
16) Sectional area of tool bar/sectional area of cutter bar: 25 X 25mm
17) Distance between centerline of spindle and supporting surface of tool: 25mm
18) Within sleeve of taper of the tailstock: No. 4
19) Maximum stroke of the tailstock: 100mm
20) Power of master motor: 5.5KW
21) Dimensions of lathe tool (L X B X H): 2, 230 X 1, 500 X 1, 750mm
22) Net weight: 4, 000kg
23) Servo motor and servo driver;
24) 4position electric tool post;
25)BBFEnglish control system;
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.

---
