CNC Lathe Clk6163 CNC Machine with CE for Metal Cutting

US$22,000.00
1-4 Pieces
US$21,500.00
5+ Pieces

Basic Info.

Model NO.
CLK6163
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Lathe Bed
CNC Machine
Max. Swing Over Bed
630
Max. Workpiece Length
1000/1500/2000/3000
Width of Bed Guideway
550
Spindle Nose
C11
Spindle Bore Diameter
100
Main Motor Power
11kw
Ball Screw Diameter and Pitch
X Axis/2505 Z Axis/5010
Product Name
CNC Lathe
Useful
Lathe machine
3 Jaw Chuck Size
325
Net Weight
3900 4200 4500 5400
Tool Section Size
32*32
Transport Package
Plywood Case
Specification
CLK6163
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
1000PCS/Year

Product Description

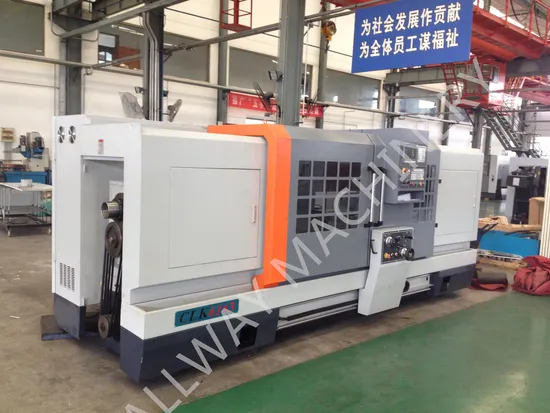

CNC Lathe CLK6163 CNC Machine with CE for Metal Cutting
1.Introduction and use
This machine adopts frequency conversion stepless speed regulation, headstock adopts high/low manual transmission . Big power, high speed, reasonable structure, the machining accuracy can be up to level 6, roundness error is not greater than 0.01 mm, surface roughness is not greater than Ra2.5 um.Suitable for medium and small batch machining precision.
2. SPECIFICATION;
Specifications Unit CLK6163
Max. Swing over bed mm 630
Max. Swing over cross slide mm 350
Max. Workpiece length mm 1000/1500/2000/3000
Width of bed guideway mm 550
Spindle speed range 3 steps(Mechanical),Stepless
Spindle speed r/min 25-850
Spindle nose C11
Spindle bore diameter mm 100
Main motor power 11KW
Cone of front end of spindle hole Metric 120 1:20
Max.Tool Post Travel mm X axis:430
Z axis:1000/1500/2000/3000
Ball screw diameter and pitch mm X axis:2505 Z axis:5010
Rapid feed mm/min X axis:4000 Z axis:6000
Positioning accuracy mm X axis:0.03 Z axis:0.032
Re-positioning accuracy mm X axis:0.012 Z axis:0.013
The process accuracy of Workpiece IT6--IT7
The surface roughness of workpiece Ra1.6
Tail stock quill diameter mm 100
Tail stock quill travel mm 250
Taper of quill MT6
Electric turret 4 station/option:6 station
Re-positioning accuracy mm 0.01
Tool section size mm 32×32
Controller GSK,FANUC,Siemens
3 jaw chuck size mm 325
Oversize(L×W×H) mm 3200(3700)(4200)(5200)×1820×1780
Net Weight Kg 3900 4200 4500 5400

Optional :
Contact ALLWAY MACHINERY , get more professional information!
