Product Details
Product Description
Product Description

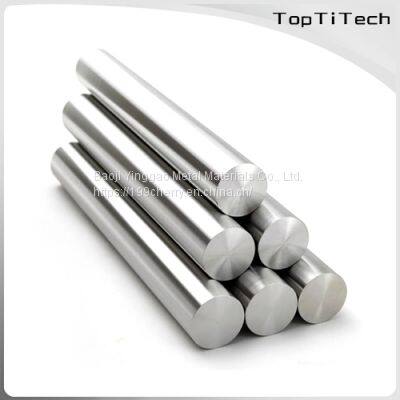

TC4 titanium rod for aviation, also known as TC4 titanium alloy rod, Gr5 titanium rod, or Ti-6Al-4V titanium rod, the composition of titanium alloy TC4 material is Ti-6AI-4V, which belongs to (a+β) type titanium alloy , with good comprehensive mechanical and mechanical properties. It has a series of advantages such as excellent corrosion resistance, small density, high specific strength, good toughness and weldability, and has been successfully applied in aerospace, petrochemical, shipbuilding, automobile, pharmaceutical and other departments.
TC4 titanium rods for aviation are mainly used in petroleum exploration equipment accessories, aerospace, shipbuilding, titanium processing parts for automobiles, standard parts, customized parts, etc., with high strength, good toughness, excellent welding performance, and wide application.
Product parameters
Product name: TC4 titanium rod, TC4 titanium alloy rod for aviation
1. Grade
National standard: TA1, TA2, TA3, TA9, TA10, TC4, TA18, ERTI-1, ERTI-2, Ti15333
American Standard: GR1, GR2, GR3, GR5, GR7, GR12, GR5, GR9
2. Manufacturing process: hot forging + turning (grinding) light
3. Delivery status
R (hot working state) M (annealing state)
4. Diameter (mm): 1-200
5. Implementation standards: GB/T 2965, GB/T13810, ASTM B348, ASTM F136, ASTM F67, AMS 4928
Features
Titanium rods have excellent properties such as high strength, good corrosion resistance, good low temperature performance, high chemical activity, and low thermal conductivity.
Mechanical properties of TC4 titanium alloy:
1. Tensile strength σb/MPa≥895, specified residual elongation stress σr0.2/MPa≥825, elongation δ(%)≥10, reduction of area ψ(%)≥25
2. Density of titanium alloy: 4.5 (g/cm3), working temperature -100~550 (℃)
3. TC4 titanium alloy chemical composition: TC4 contains titanium (Ti) balance, iron (Fe)<0.30, carbon (C)<0.10, nitrogen (N)<0.05, hydrogen (H)<0.015, oxygen (0)<0.20, aluminum (Al) 5.5 ~ 6.8, vanadium (V) 3.5 ~ 4.5
7. Application
1) Chemical industry: Titanium rods are mainly used in the chlor-alkali industry, metal anode electrolyzers, ionic membrane electrolyzers, filters, pump valves, wet oxygen coolers, refined brine preheaters, dechlorination towers, chlorine gas cooling and washing tower etc.
2) Medical field: TC4 titanium rods are mainly used as medical devices, orthopedic implants, such as bone screws, joints and spines.
3) Petroleum field: mainly TC4, TC11, TC18 and other high-strength titanium alloy rods, which are drilled and machined into titanium alloy tubes, mainly used for oil logging instrument outer cylinders, inclinometer outer cylinders, and deep-sea resistant Ballast and other products.
4) Aerospace field: aircraft nozzles, fuselage frames, impellers and other parts.
>>
