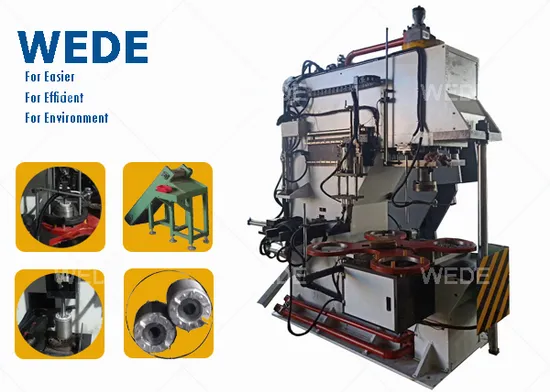

---4 rotary stations running.
main driven by big power, and the divider also servo motor connecting with reducer.
---can be semi-auto (auto casting, auto divider, auto lubrication, auto unloading)
---can be selected to equip with auto loading, and transfer to next station by conveyor
---can do casting for the loose lamination core by the dummy shaft manual assembly and auto dummy shaft draw back device.
---can be selected to equip with environment protective shield. So that fully auto running rotor die casting machine Pressure aluminum filling machine for the rotor
| Structure |
| I. Machine frame and beam |
| (a.)Frame takes weld structure, main boards etc are welded of steel sheet and accepts stress relief treatment. |
| Machine surface is sandblasted and painted. |
| (b.)The Piston Guide Sleeve, the supporting guide ring are inlaid with phosphor copper and lubricated with lubricating |
| oil. The guiding pillar adopts the special guiding pillar guiding support. |
| II. Machine is numerical control system and has 4 rotary stations. The control precision is high, the protection |
| is comprehensive; the structure is simple for easy operation. |
| Rotary stations are driven by XINJIE servo motor and indexing by precise RV reducer, which achieves |
| higher anti-load capability than the traditional divider and keep high precision running for longer time. |
| Servo system achieves obvious energy saving. (servo motor divider) |
| The operation is simple and fast, the die is fixed by snap spring, which ensures fast die change-over and furthermore |
| upgrade the production efficiency. |
| (a.)Integral fixed hydraulic station is applied. |
| (b.)Hydraulic Station Adopts Open Control System, main cylinder has two-speed function, other cylinder adopts flow |
| control, pressure is proportional to system pressure, which can save energy and improve production efficiency. |
| (c.) System operating pressure < 20MPA. |
| (d.)Solenoid directional valve takes high quality brand. |
| (e.)The hydraulic oil return system is cooled by circulating cooling water. Cooling Water and piping provided by |
| Customer |
| (f.)Hydraulic station takes servo motor. |
| (g.)The main oil pipe of the equipment is made of seamless steel pipe, and the flexible hydraulic oil pipe is used in the |
| oil pipe of the moving parts. |
