3000RPM 32W 36V 8poles 0.05n. M 24V 2.5A 1.6A Electric Gear BLDC Brushless DC Motor

Product Description

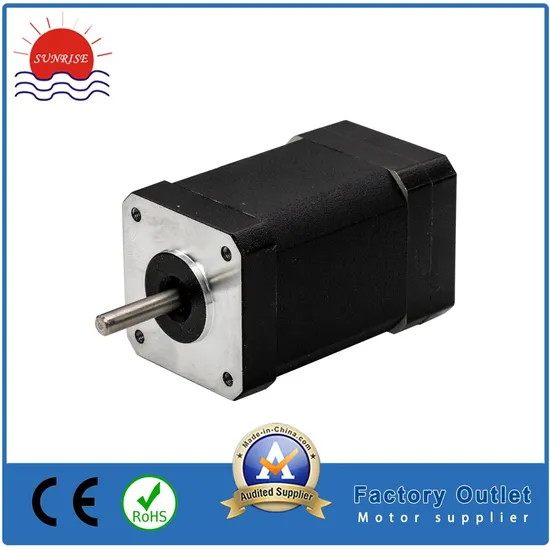

BLDC Brushless DC Motors 42BL (NEMA17)Product Description
Brushless DC Motor :
The BLDC motor offers exceptional torque and speed, higher efficiency, as well as package sizes suited to meet the most stringent of application requirements. These brushless DC motors are electronically commutated and can be supplied in either sensored or sensorless versions, with all having 3 phase windings. Be it Round, Square or Flat, these products offers the following benefits:
1) Winding Type: Star
2) Hall effect angle: 120°Electrical angle
3) Insulation Class: B
4) Ambient Temperature: -20ºC~+50ºC
5) Insulation Resistance: 100MΩ Min.500V DC
6) Dielectric Strength: 600VAC 1 minute
7) Max Radial Force: 28N (10mm from front flange)
8) Max Axial Force: 10N
Brushless DC Motor Series 42BL NEMA17
The 42BL NEMA17 Brushless DC motor is a synchronous electric motor which is powered by direct-current electricity (DC) and which has an electronically controlled commutation system, instead of a mechanical commutation system based on brushes. In such motors, current and torque, voltage and rpm are linearly. Motor Highlights
- Square shape
- 3 phases
- Hall sensors
- 8 poles, Sintered NdFeB Magnets
- Rated torque up to 300 mNm
Product Parameters

Model	Rated voltage	Rated output power	Rated speed	Rated current	Rated torque	Peak current	Peak torque	Voltage constant	Torque constant	Number of poles	Winding class	Motor Length	Motor weight
	U	Pout	nN	IN	TN	IP	TP	KE	KT	NP		L
	V	W	rpm	A	N.m	A	N.m	V/ Krpm	N.m/A			mm	Kg
42BL3A45-2438	24	15.7	3000	0.82	0.05	2.5	0.15	6.3	0.06	8	B	45	0.3
42BL3A45-3638	36	15.7	3000	0.54	0.05	1.6	0.15	9.47	0.09	8	B	45	0.3
42BL3A50-2438	24	32	3000	1.8	0.1	5.4	0.3	6.3	0.06	8	B	50	0.35
42BL3A50-3638	36	32	3000	1.2	0.1	3.6	0.3	9.47	0.09	8	B	50	0.35
42BL3A70-2438	24	64	3000	3.6	0.2	10.8	0.6	6.3	0.06	8	B	70	0.55
42BL3A70-3638	36	64	3000	2.4	0.2	7.2	0.6	9.47	0.09	8	B	70	0.55
42BL3A90-2438	24	95	3000	5.4	0.3	16.2	0.9	6.3	0.06	8	B	90	0.75
42BL3A90-3638	36	95	3000	3.6	0.3	10.8	0.9	9.47	0.09	8	B	90	0.75

Remark:
1. This motor can be customized with special request.
2. Options: Planetary gearhead 36mm, 42mm, 56mm; Encoder; Brake.
Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR	WIRE GAGE
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALL B	GREEN
HALL C	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE
