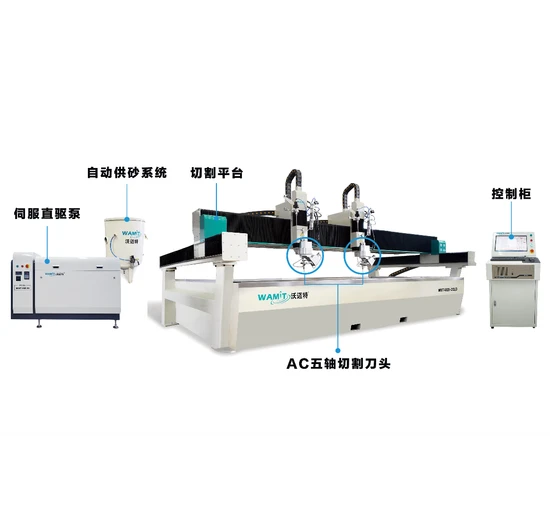

Double Heads 5 Axis 4000*2000 mm Ceramic Tile Stone Marble Granite Waterjet Cutting Machine

Product Description

PRODUCT DESCRIPTION double heads 5 axis 4000*2000 mm Ceramic Tile Stone Marble Granite Waterjet Cutting Machine The gantry-style balanced design structure is more stable and improves the accuracy of the machine. Ultra-high pressure cutter head, which can be cut with pure water and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts Taiwan's high-quality guide rail and Swedish ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use. China's first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain. The CNC control system uses the WEIHONG professional waterjet cutting CNC system. Our direct drive pump will save your 60% electricity cost. More advantages 1. Automatic lubrication system from the Valley of Japan. 2. The internal components are selected from Schneider International
brand, with first-class quality and reliable work.
3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ).
4. High precision, Ensure cutting results.
5. Provide customizable services.
6. After-sales Service: Field maintenance and repair service, Online support, Field installation, commissioning and training,
Video technical support, Free spare parts. Can be customized to any size, mini platform or ultra-large platform or other size can be customized. Detailed Images 420MPA INTENSIFIER PUMP Model:WMT3742Z
motor:SIEMENS
Method of Direction Regulation:Electronic direction regulation
Pressure Range:50-420MPA, continuous pressure is 330-380Mpa
Maximum Flow of Hydraulic Pump:90 L/min
Maximum Discharge Capacity:3.7 L/min
Maximum Diameter of Gem Nozzle:0.33 mm
Power of Master Motor:37 KW
Power Source:380V/50HZ, also work at 220V/60HZ, 415V CUTTING TABLE X axis Characteristic:use strong 10MM steel, 4000 length
Y axis Characteristic:Cast iron is used as the foundation base , 2000MM cutting range .
Z axis Characteristic:Z axis double linear guide and four sliding block , 170MM, CAN DO 250MM
Control Accuracy ±0.01mm, cutting accuracy is ±0.1mm, reposition accuracy: ±0.02mm, max travelling speed:50000mm/min,
Linear guider:TAIWAN HIWIN BRAND
Table structure:Separated body, can be delivered by one 40'FCL container
Driving Way:Servo drive system
CNC system :Ncstudio ,Fagor
Servo Motor :YASKAWA motor
Cutting Head:Casting structure and Concrete structure
Sealing Way:soft dustproof cloth on X,Y,Z axis,the sealing result will be better,and there is a oil tank under the cutting
table,the linear guider no need maintainence.
Loading Weight Water Tank:Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years. AUTOMATIC ABRASIVE FEEDER Function:Sand storage and sand delivery
Operating :No need electrocnic control,sample operation
Capacity:200 kg for 8 -10hours
Pressure :0.3-0.6Mpa compresses gas pressure
Color:White CNC CONTROLLER Control Method:CNC
Display Size:21inch LCD
Model of Cutting Text:DXF
Model of Computer:Industrial Control Computer
Operating System:Windows 7 can be WINDOWS 10
PLC: SIEMENS
Cutting Software Advantage:Auto save and transfer common parameter AC 5 AXIS WITH 60 DEGREE ANGLE FLIP TABLE OIL CHILLER 60000PSI DIRECT DRIVE PUMP REMOTE CONTROLLER WATER SOFTENER WATER SUPPLY SYSTEM use between pump and your water source height tracking system WATER SOFTENER ABRASIVE REMOVAL SYSTEM Italy imported ECS software support more than 15 languages and support WINDOWS 10 Cutting Samples Packing&Shipping packed in one 20'FCL container. After Sales Service FIND AGENTS IN ALL WORLD
We have exported to more than 20 countries yet, and now have agent in America, Russia,South
Africa,Ecuador,UK,Argentina,Chile,Mexico,Australia,Saudi Arabia and other GCC countries, Malaysia,Vietnam.
we can arrange engineers go to customer's factory if no agents in their country.
reback time: not more than 12 hours. Customer Photos FAQ 1. Are you manufacturer of trading company? we are professional manufacturer of water jet cutting machine and our factory is in JINAN city, China. 2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber,
copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not
more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer
for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide
installation videos.
5. what's your delivery time?
Generally speaking is 30 days. if have stock, 15 days.

---
