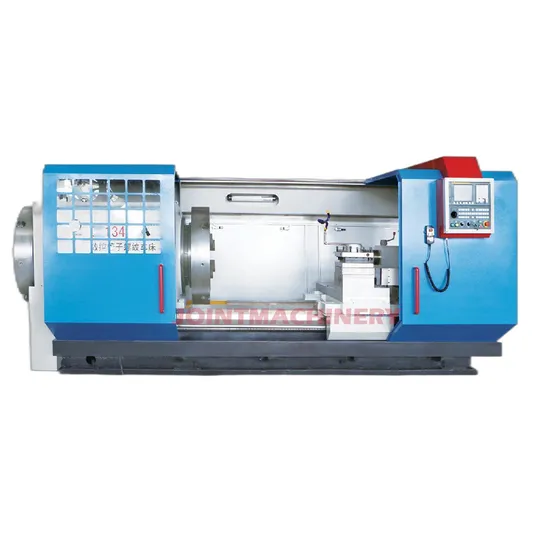

Qk1343 Oil Pipe Threading CNC Machine Metal Pipe Thread Machine

Product Description

This series CNC pipe threading lathe is mainly designed for processing internal pipe threads, including metric, inch and taper threads. As well as having all the common functions of normal CNC lathe, such as processing inner and outer cylindrical surface, conical surface, curved surface, groove, end face, etc. This series lathe is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coup-ling and son on.
Double Chuck
Big spindle bore and double chuck allows clamp and process big diameter pipes.
Quenched Guide
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Tool Post Turret
Standard with 4 station electric tool post. Optional: 6/8/10/12 station turret tool. Quick tool change speed, accurate tool change.
Tailstock
Standard with manual tailstock. Optional: Hydraulic or pneumatic type tailstock.
CNC Control System
GSK, FANUC, SIEMENS, KND, and other operating systems can be according to customer requirements.
CNC Pipe Threading Lathe QK1343

Item		Unit	QK1343
NC system			Standard: GSK; Optional: FANUC, SIEMENS, KND
Max diameter swing over bed		mm	1000
Max diameter swing over cross slide		mm	610
Max length of workpiece		mm	1500
Width of bed		mm	755
Spindle bore		mm	440
Power of spindle motor		kw	22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	L:23-120; H:65-258
Max traverse of X/Z		mm	X:550 Z:1250
X/Z rapid traverse		mm/min	4000
X-axis motor	Speed	r/min	1500
	Torque	N.m	18
	Power	kw	2.8
Z-axis motor	Speed	r/min	1500
	Torque	N.m	22
	Power	kw	3.5
Tailstock quill	Diameter	mm	140
	Travel	mm	300
	Taper		Morse NO.6
Turret	Mode		SLD170A04N
	Tool post type		Vertical 4-station tool
	Dimension	mm	300*300
	Turret indexing time	s	5.6
Chuck			K66-1000 4-jaw electric chuck
Positioning accuracy		mm	0.02
Repeat positioning accuracy		mm	0.01
Dimension (L*W*H)		mm	5000*2200*2100
Weight		T	14

Standard Configuration:
Optional Configuration:
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
