US$0.15-5.00
|
1,000 Meters
(MOQ)
|
Basic Info.
Model NO.
PVC Layflat hose
Type
Thermosetting Plastic Pipe
Usage
Drainpipe, Agricultural Irrigation Pipe, Corrugated Pipe
Fire Hose Length
10-10000m
Weaving Type
Twill & Plain Weave
Hose Coupling Structure
Coupling
Model Number
Lay Flat Hose
Product Name
PVC Layflat Hose
Application
Irrigation.Water Discharge
Feature
Light Weight,Good Flexibility
Working Temperature
-20 C to +65 C
Transport Package
Carton/Wooden Box/Container/Pallet
Production Capacity
15, 000, 000m/Year
Product Description

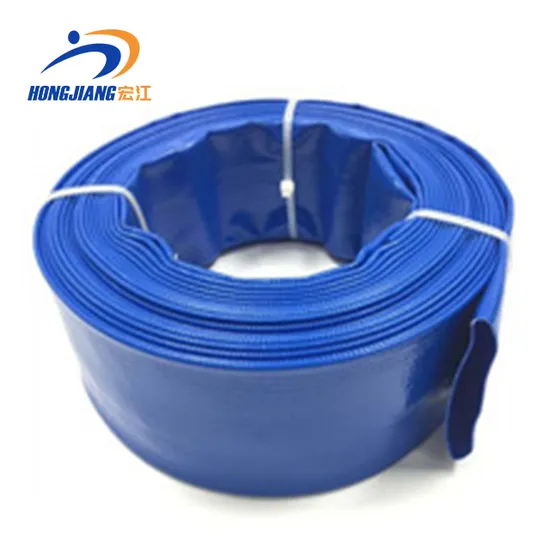

PVC LAYFLAT HOSE-LIGHT DUCT Application
Ideally suited for agricultural, mining, greenhouse, farmland construction site and general purpose.
Feature
• 100 meter continuous long-length
• Compact and easy handling
• Durable and economical
• Resistance to abrasion and weathering
Material
Plasticized PVC hose interlaced with high strength polyester yarn reinforcement in middle.
Temperature
-10˚C to + 60˚C
|
Layflat hoses are versatile, durable, and widely used in various industries for fluid transfer. Made from
materials like PVC, TPU, and rubber, they are designed to be flexible, lightweight, and easy to handle.
These hoses are known for their ability to be laid flat when not in use, making them highly convenient for
storage and transportation.Following is the detail infomation about our goods.
| Product Infomation |
| Part No. | Size | ID (mm) | Working Pressure (Psi) | Working Pressure (Bar) | Bursting Pressure (Psi) | Bursting Pressure (Bar) | Weight (kg/m) | Length (m/roll) | Volume (m³/roll) |
| FHS-101 | 3/4" | 20 | 60-75 | 4 | 220 | 15 | 0.14 | 100 | 0.015 |
| FHS-102 | 1" | 25 | 60-75 | 4 | 220 | 15 | 0.15 | 100 | 0.015 |
| FHS-103 | 1-1/4" | 32 | 60-75 | 4 | 220 | 15 | 0.17 | 100 | 0.02 |
| FHS-104 | 1-1/2" | 38 | 60-75 | 4 | 220 | 15 | 0.21 | 100 | 0.024 |
| FHS-105 | 2" | 50 | 60-75 | 4 | 200 | 15 | 0.24 | 100 | 0.03 |
| FHS-106 | 2-1/2" | 65 | 60-75 | 4 | 200 | 15 | 0.32 | 100 | 0.044 |
| FHS-107 | 3" | 76 | 60-75 | 4 | 200 | 12 | 0.36 | 100 | 0.052 |
| FHS-108 | 4" | 102 | 60-75 | 4 | 200 | 12 | 0.55 | 100 | 0.065 |
| FHS-109 | 5" | 127 | 60-75 | 4 | 200 | 12 | 0.75 | 100 | 0.11 |
| FHS-110 | 6" | 152 | 60-75 | 4 | 200 | 12 | 0.9 | 100 | 0.12 |
| FHS-111 | 6-1/2" | 163 | 60-75 | 4 | 200 | 12 | 1.2 | 100 | 0.15 |
| FHS-112 | 8" | 203 | 60-75 | 4 | 180 | 12 | 1.65 | 100 | 0.23 |
| FHS-113 | 10" | 252 | 60-75 | 4 | 180 | 12 | 2.6 | 50 | 0.18 |
| FHS-114 | 12" | 304 | 60 | 4 | 160 | 10 | 3.1 | 50 | 0.24 |
| FHS-115 | 14" | 356 | 60 | 4 | 150 | 10 | 5.1 | 50 | 0.3 |
| FHS-116 | 16" | 400 | 60 | 3 | 120 | 9 | 6.5 | 50 | 0.4 |
