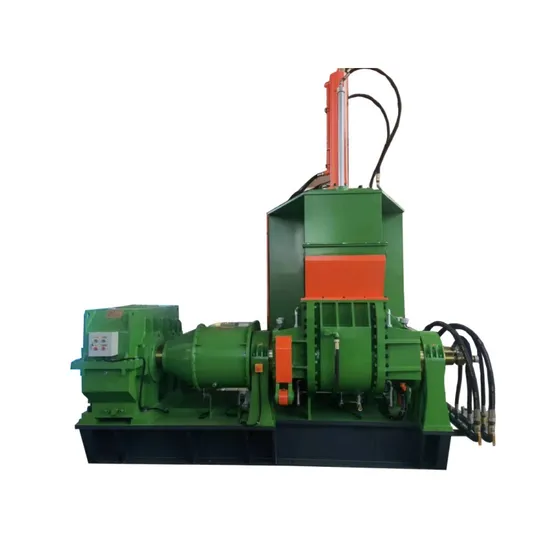

75L 90L 110L Internal Rubber Kneader /Banbury Rubber Kneader Machine

Product Description

75L 90L 110L Internal Rubber Kneader /Banbury Rubber Kneader Machine/Dispersion Kneader Machine
Introductions:
This Rubber Dispersion Kneader (banbury mixer) is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials. They are also suitable for mixing a variety of low viscosity materials. Product Parameters

Model		3L / 5L	X(S)N-20×34	X(S)N-35×30	X(S)N-55×30
Total volume of mixing chamber	L	8 / 15	45	75	125
Working volume of mixing chamber	L	3 / 5	20	35	55
Main motor power	KW	5.5 / 7.5	30	55	75
Tilting motor power	KW	0.55 / 0.75	3.0	4.0	4.0
Tilting angle	°	110-135	140	140	140
Rotation speed of rotor(front/rear)	r/min	0-42	34/28	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water(rubber mixing)	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor(plastic mixing)	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size	mm		3100×1300×2450	3200×1900×2945	3300×1900×2900

Model		X(S)N-75×30	X(S)N-110×30	X(S)N-150×30	X(S)N-200×30
Total volume of mixing chamber	L	175	250	325	440
Working volume of mixing chamber	L	75	110	150	200
Main motor power	KW	110	185	220	280
Tilting motor power	KW	4.0	5.5	11	11
Tilting angle	°	140	140	140	140
Rotation speed of rotor(front/rear)	r/min	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water(rubber mixing)	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor(plastic mixing)	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size	mm	3760×2143×3135	4075×2712×3580	4200×3400×3900	4250×3400×4215
