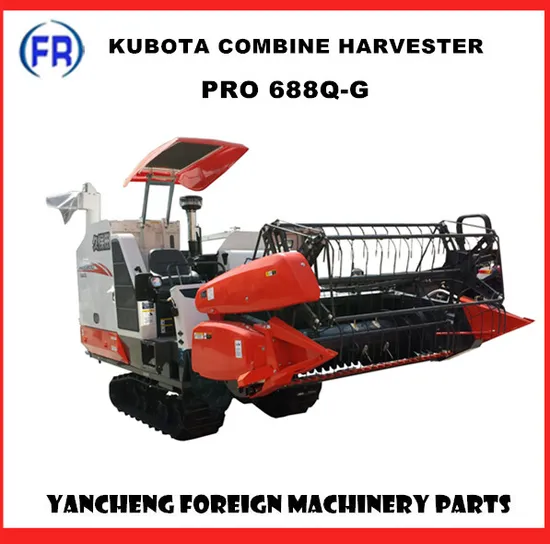

Kubota 688q -Gcombine Harvester for Sale

Product Description

Product Description

	MODEL	4LZ-2.5(PRO688Q-G)
Dimension	Overall length(mm) Overall width(mm) Overall height(mm)	4860 2295 2765
	Weight (kg)	2815
Engine	Model	V2403-M-DI-TE2-CKMS6
	Pattern	vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesle
	Cylinder capacity (L[cc])	2.434[2434]
	Rated output/speed(ps[kw]/rpm)	68[50]/2700
	Burnt oil	0 # diesel
	Fuel tank capacity(L)	60
	Starting method	starter motor
	Storage battery(V.Ah)	12·52
Travel unit	Width*contact length(mm) Centre distance(mm) Average ground pressure(kpa[kgf]/cm2)	450×1680 1150 18.1 0.19
	Minimum ground clearance(mm)	275
	Transmission mode	hytrostatic stepless change[HST]
	Speed grade	stepless vice-speed 3files
	Running speed (m/s)	low speed:0~0.97; cruising speed:0~1.37;hign speed:0~1.85
Harvest unit	Pull-grain methold Harvesting width(mm) Cutter width(mm) Harvest height(mm) Lodging adaptive(degree)	pull-grain machine 2000 1905 40 (tool nose) < 85 degeree, < 70 degree
Threshing unit	Threshing system	axial-flow type
	Threshing teeth type Diameter × width(mm) Rotational speed(rpm)	rob teeth Φ620 × 1790 560
	Second transmission mode	auger
	Screening method	vibration sieve.air seperating
	Concavity net area (4) ()	1.621
Uereal discharge unit	Capacity (L) Cereal ejection port number(piece)	1000 1
Warning lights and equipments	Second screening and vertical transmission Cerealcollection fill up Water temprature Charging of accumulator Engine oil pressure
	Suitable crops	rice / wheat
	Operational efficiency (A unit of area/ hour)	3-8 ( change according to the type of crop)

Other Kubota Products
We specialized in kubota spare parts, kubota machine ( kubota harvester, kubota transplanter,kubota tractor).
MACHINE MODEL: 488, 588I, 688Q, 788, 888, DC60, DC68G, DC70, DC95, 704K, 854 ,954,1004, NSPU68C, NSPU88C, SPW48/68C
Kubota machine and Spare Parts are popular in Philippines, Tailand, Vietnam and Sri Lanka and other countries. So glad to talk with you about Different Kubota machines and Spare Parts.
Company Introduction:
Our company leading with agricultural machines and parts.The rich brands and types with the high quality you can find all here.Domestic and overseas can let you choose freely.
Combine harvester,Transplanter,Tractor,Seeding planter, Walking tractor,Mini machine with Kubota ,Yanmar,SHN,JohnDeere,Lucky Star,Changfa,Dongfeng,different choice according to your personal request. The matched implements such as front loader,backhoe,rotary tiller, tubers excavators etc and spare parts,engine parts form a complete product line.
The rich experience, deserved reputation and enough strength can make us always have enough promote goods to supply our wide customers in Philippines,Vietnam,Thainland,Indonesia,Tanzania,India,Iron,SriLanka,Bolivia,Hungary,etc.
Welcome to your contract!

---
