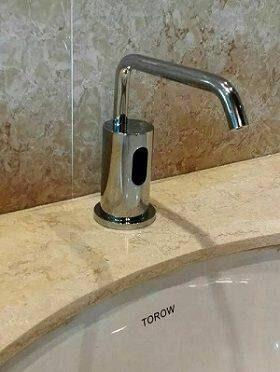

Automatic Foam Soap Dispenser

Product Details

Product Description

Product Description
The faucet soap dispenser (drip or foam optional) is equipped with drip as standard, and customer service can be contacted
H-P013G
Technical indicators: Name Technical parameters
Rated voltage (DC) 4.5-6.5V (4 No. 5 alkaline batteries)
Rated working current static: 0.18mW dynamic: 1.2W
Infrared reflection distance 5-80mm
The ambient temperature for use is 0-55 ℃
The ambient humidity used is ≤ 100RH
Approximately 1mL of soap is given
Noise ≤ 50dB
Usage guide:
1. This product is suitable for installation and use on hand washing countertops;
2. Insert your hand into the lower end of the soap outlet and face the sensing window until the soap flows out;
3. Each induction only produces about 1 milliliter of soap solution once.
Installation method:
1. Drill in an appropriate position on the countertop φ 24mm~ φ 26mm round hole;
2. Insert the plug connecting the soap nozzle into the hole. Insert the gasket and tighten the nut;
3. Open the battery box cover and follow the instructions to install four "5" AA batteries. In addition, this device can also be equipped with an external power supply, and rechargeable batteries must be selected. The output plug of the power transformer is inserted into the input battery socket of the control box;
4. Insert the intelligent control box into the lower connector of the soap nozzle and clip it into the fixed card;
5. Insert the induction connection wire plug for the soap nozzle into the wiring window of the control box and cover it with a waterproof cover;
6. Add soap solution to the soap storage tank, align the tank opening with the control box and tighten clockwise at the soap dispenser inlet;
7. The initial product requires multiple induction to expel air due to the lack of soap solution in the soap dispenser.

---
