Shaft Type/Sleeve Type Flexographic Printing Flexo Resin Plate Mounting Machine

Product Description

Description:
This flexo plate mounting machine is specializing in mouthing polymer resin plate on the printing cylinder. Equips with up-and-down adjustable precise screw unit, Japanese SINCO high grade amplified lens CCD camera, HF liquid crystal monitor for display, the camera can be adjusted in all directions, higher precision of printing plating adhesion and accurate registering, the printing plate can be stuck in telescope, faster sticking the printing plate, ease of operation.
The rack construction with the wallboard structure after high-strength holistic processing has great working stability and is durable in use;
The 650-line color high-definition camera can reach 70-times amplification ratio, present clear images, possess high resolution ratio, and substantially improve the precision of the plate;
The lifting of plate roller structure adopts thegear motor drive control, which largely facilitates the operations of the plate;
The complete flexo plate mounting machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation;
The 19-inch high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers.
Technical Parameter:

Model	Print plate width	Print cylinder width	Dimension
BG-320	320mm	Ф800mm	0.9*0.6*1.65m
BG-650	650mm	Ф800mm	1.05*0.6*1.65m
BG-1000	1000mm	Ф1200mm	1.5*0.6*1.65m
BG-1200	1200mm	Ф1200mm	1.7*0.6*1.65m
BG-1300	1300mm	Ф1200mm	1.8*0.7*1.65m
BG-1500	1500mm	Ф1200mm	2.1*0.7*1.65m
BG-1800	1800mm	Ф1200mm	2.4*0.7*1.65m

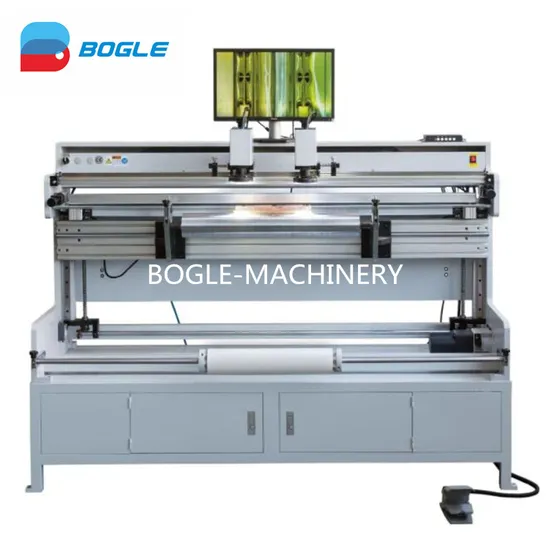

Machine Photos:
Our Factory:
Our Customer Feedback:
Certificate:
Package & Loading:
FAQ:
1.:Are you manufacturer or trading company ?
We are manufacture, specializing in plastic package machinery filed more than 15 years, we have own export sale team.
2. Where is your factory?
Our factory is located in Ruian,Zhejiang Province, China, about 1hour far away from Shanghai or Guangzhou, after you arrive Wenzhou Airport or Ruian Railway Station, we will drive and pick you up there, welcome to visit our factory.
3 What's the deliery time?
Generally, the delivery time is about 30-40 days, if you need machine urgently, we also could shorten the delivery time.
4.:What's the quality warranty period?
one year quality guarantee, within the period, freely provide replacement at the buyer delivery cost, life long after sale service and technical support,

5:What's the package method?
The machine will be cleaned and packed with stretch plastic film to avoid dust.

6.Does your factory provide installation and trainning service?
We could appoint engineer go to the buyer's factory to do installation and trainning at the buyer's cost.
7:What are your terms of payment?
We accept T/T and L/C.

---
