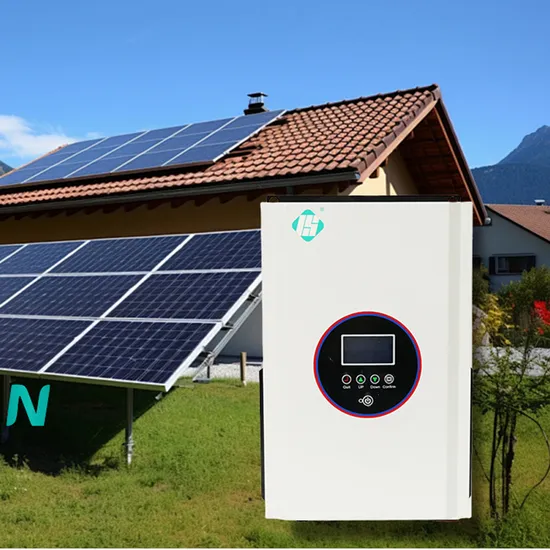

Dml Series 48V 5kw China Best Prices DC to AC Power Hybrid Solar Panel Inverter for Home with 60A MPPT Capability

Product Description

DML Series Built- in MPPT Controller 48V/60A/5000W off Grid Solar Inverter with wifi monitoring Detailed Photos

Model No.	DM100	DM150	DM200	DM300	DM400	DM500	DM600	DM800
Rated Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8000W
Peack Power	3000W	4500W	6000W	9000W	12000W	15000W	18000W	24000W
Battery Voltage	12V/24V	24V	24V/48V	48V	48V	48V	48V	48V
Built in MPPT charger
Max Charge current	30A/40A	40A	40A/60A	40A/60A	60A	60A/100A	60A/100A	60A/100A
PV input range	12V:38V to 150V,48V:65V to 150V
Max PV Input	12V30A:360W 24V30A:720W 24V30A:720W 24V40A:960W	960W	24V40A:960W 24V60A:1440W 48V40A:1920W 48V60A:2880W	48V40A:1920W 48V60A:2880W	2880W	48V60A:2880W 48V100A:4800W	48V60A:2880W 48V100A:4800W	48V60A:2880W 48V100A:4800W
AC Input
Phase	L+N+G
Input voltage	110V or 220V.110:85v to 138v,220v:170v to 275V
Input frequency	45HZ to 55HZ
AC Output
Output voltage	Inverter Mode:110V or 220v,+-5%,AC mode:110V or 220v,+-10%
Frequency range(AC Mode)	Automatic tracking
Frequency range(Inverter Mode)	50HZ/60HZ +-1%
Overload capapcity	Under AC mode: 100% to 110%:10 mins 110% to 130%:1 min over 130%:1s
	Under Inverter mode: 100% to 110%:30s 110% to 130%:10s over 130%:1s
Conversion time	less than 10ms for typical loads
Waveform	Pure sine wave
Effcienty	More than 85%
Working conditions
Operation temprature	0 to 40 degree Battery life decreases at ambient temperatures above 25 degrees Celsius
Operation humidity	less than 95% without condesing
Operation Altitude	<1000m(every increase of 100m,it will reduce output of 1%) max 5000m
Noise	less than 58dB the distance to machine is 1 meter
Management
Display	LCD+LED
Communication interface	RS485

Model No.	DM100	DM150	DM200	DM300	DM400	DM500	DM600	DM800
Product Size(mm)	400*269*135	400*300*180	502*400*168	502*400*168	502*400*168	502*400*168	700*440*210	700*440*210
Packing Size(mm)	466*339*201	470*355*235	630*485*260	630*485*260	630*485*260	630*485*260	770*510*380	770*510*380
Gross Weight(Kgs)	11	13.5	19	21
Net Weight(Kgs)	10	12	21	23

FAQ
1. What types of loads can the M-Box1200 handle? The M-Box1200 is designed to handle a wide range of load types due to its power frequency design and built-in isolation transformer and inductance. It can support both resistive and inductive loads, making it suitable for various applications.
2. Does the M-Box1200 provide pure sine wave output? Yes, the M-Box1200 provides pure sine wave output, which ensures that connected electrical equipment operates smoothly and is protected from potential damage caused by irregular power supply.
3. What is the battery capacity of the M-Box1200? The M-Box1200 has a built-in 1280Wh lithium battery pack, which allows for extended use and reliable backup power in case of a mains power failure.
4. Does the M-Box1200 have UPS functionality? Yes, the M-Box1200 includes UPS (Uninterruptible Power Supply) functionality, allowing for fast switching between power sources to ensure uninterrupted power supply to connected devices.
5. What kind of batteries are used in the M-Box1200? The M-Box1200 uses high-end lithium iron phosphate (LiFePO4) cells, known for their low internal resistance, high safety, high cycle life, and long lifespan, providing reliable and efficient energy storage.
6. Can the M-Box1200 be used for solar power applications? Yes, the M-Box1200 is equipped with a built-in MPPT (Maximum Power Point Tracking) controller, making it highly efficient for solar charging. This allows it to be used effectively in solar power systems.
7. How can I adjust the settings on the M-Box1200? The settings of the M-Box1200 can be adjusted using the LCD display interface. This user-friendly interface allows for easy customization of parameters to suit different working environments.
8. What protection features are included in the M-Box1200? The M-Box1200 includes multiple protection features, such as low voltage, high voltage, high temperature, short circuit, leakage, overcurrent, and overload protection, ensuring the safety of the unit and connected devices.
9. What types of output does the M-Box1200 provide? The M-Box1200 provides dual AC output through universal sockets, compatible with various international plug standards. It also includes four 5V-2A USB DC outputs, making it convenient to charge small electronic devices.
10. Is the M-Box1200 suitable for outdoor use? Yes, the M-Box1200 is designed to be portable and easy to install, making it suitable for outdoor activities such as camping, exploration, and rescue operations. Its robust design ensures reliable performance in various environments.

---
