Basic Info.
Processor Type
Intel Celeron
Hard Disk Capacity
SSD 256g, 512g, 1tb Optional
Graphics Card
Integrated Graphics Card
Built-in Bluetooth
Built-in Bluetooth
Built-in 3G Module
Without 3G Module
Transport Package
Standard Giftbox, Customizable
Specification
315*255*17.5mm
Production Capacity
10000PCS/Day
Product Description

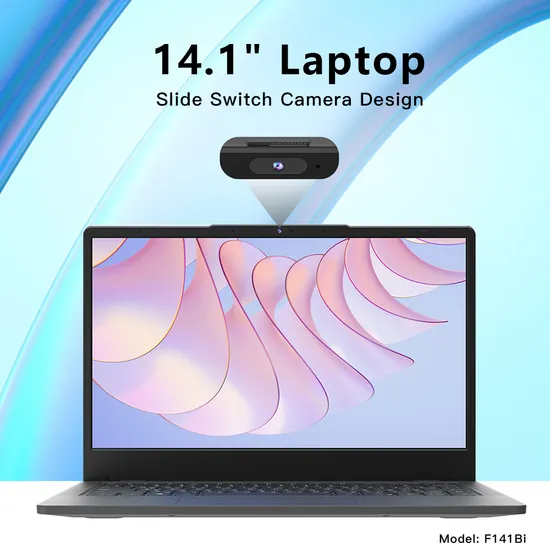

Smart laptop i3 i5 windows 11 laptop with ergolift hinge webcam kill switch 14 inch windows laptop
Unique features:
1- Ergolift hinge design for better heat dissipation, easier to plug/unplug U disk/HMDI/charging cable and etc.; type in a more confortable way
2- Physical camera slide switch, for privacy protection
3- Full function type C optional
Product Characteristic | 14.0" Notebook |
System Physical Standard Configuration: |
Type | Details | Descriptions |
Product Form | Form Factor | Notebook |
Dimensions | 315*255*17.5mm |
Weight | 1.38kg |
LCD | Screen Size | 14.0" |
Screen Resolution | 2160*1440 IPS 3:2 |
TP | Touch Module | / |
Battery | Type | Lithium-ion polymer battery 7.6V or 11.4V |
Capacity | 7.6V*5000mAh / 11.4V*3350mAh |
Working Time | 6-7hours |
System Hardware Configuration: |
Type | Details | Descriptions |
CPU | Type | Geminilake N4020 / N4120 Jasperlake N4500 / N5100 Ice Lake i5-1035G1 Tiger Lake i3-1115G4 / i5-1135G7 |
Speed | - |
GPU | Type | - |
Memory | Capacity | DDR4 4G/6G/8G |
Storage | Capacity | eMMC NA/64GB/128GB(Optional) |
Camera | Front | 2.0M(with slide switch) |
Rear | / |
Speaker | Built-in | Built-in stereo speakers 8Ω/1.0W*4 |
G-sensor | Built-in | / |
Network Connections: |
Type | Details | Descriptions |
WIFI | WIFI Module | WIFI 802.11ac |
4G LTE | Built-in | Optional |
Bluetooth | BT Module | Bluetooth4.2 |
Ethernet Network | External Dongle | Support |
Interface Configuration: |
Type | Details | Descriptions |
Memory Card Slot | External Memory | 1x micro SD scard up to512B or SSD(Optional) |
SIM Card Slot | Data Storage | / |
USB Interface | USB Interface Type A | Support USB-A*2 |
USB Interface Type C | USB Type C(Data+DP+Charging)*1 |
Headphone Jack | Music Output | ∮ 3.5mm standard headphone jack |
HDMI Interface | Video Output | HDMI A Type |
| DC | | Charging | DC*1 |
| Fingerprint | Fingerprint | optional |
Keyboard | Input Device | USB,BT Expuntable Wired / Wireless Supportive |
Main Accessories: |
Type | Details | Descriptions |
Power adapter | Standard Configuration | DC 12V/3A or DC 19V/2.1A |
USB Cable | Standard Configuration | Host |
Software Configuration: |
Type | Details | Descriptions |
Operating System | Android Version | / |
Windows | Windows 11 |
Product Description
Packaging & Shipping
Company Profile Shenzhen Pretech international Co., Ltd. was founded in 200 and specializes in the research and development of consumer electronics. We pride ourselves in the quality of our products and excellent sales service. Our main product lines are android, Linux and Windows based terminals, including tablet PC, smartphones, and notebooks, and active stylus solution for touch screen. Pretech's professional R&D, sales and service teams have many years' combined experience and successfully delivered countless large ODM and OEM custom projects.
More recently, we have developed Android or Linux based smart terminals with LTE, WI-FI, Bluetooth, Zigbee, ZWave, NFC, 3D TOF camera and various interfaces for smart home automation, smart security application fields, in-vehicle infotainment system, car diagnostic system, sports equipment, healthcare information system, smart appliances, smart advertisement industry, simplified smart payment system, easy-to-use educational projects and numerous other application fields with smart interactive display needs. Pretech is deeply focusing on Hardware and OS research and development and we have helped lots of clients build their own smart terminals. Our products are CE, FCC, ROHS & Reach certified.
We remain true to our core values - always putting our customers first. If you have any new product ideas or concepts, please contact us. We are sure you will notice a world of difference and look forward to forming a long-term business partnership with you.
FAQ Q1: Can you support to design the tablet pc smartphone laptop outlook?A1:Yes, we can custom ID and MD design with your reference and using scenario description.Q2: Do you support the product software(SW) development?A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd partysoftware(SW) developer assigned by clients.Q3: Which OS can you support development?A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS.Q4: Can you support to remove the battery from tablet PC?A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device. Q5: Can you support SDK service?Q5: Yes, we can support SDK (software kit development) service for customers. Q6: Do you have any experience with smart home projects?A6: Yes,we have rich experience with quite a lot smart home iOT cases. Tuya, Google assistant work with Alexa, Zigbee, Z-wave, LoRa, etc. Actually, we have developed a touch screen device which has a broad range of industrial applications. such us1) Smart home control 2) Smart touch panel for smart appliance3) Smart OBD diagnostic device for cars, smart display panel for rear seat of the car, tablet PC with TOF camera for driving monitoring4) Smart health care devices for doctor and nurse in hospital, smart senior care tablet PC, smart health care for kids5) Smart display with AI 6) Different size display open frame for smart scooter smart bike and smart treadmill 7) Smart big touch screen for ad players, POS devices for bank and mall.8) Education tablet PC with keyboard and stylus pen for studentsand other ODM projects too numerous to list.Q7: Can you support customization of accessories for smart devices?A7:Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen forsmart device.Q8: Can you provide prototype samples?A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and we will then be able to come back to you with the best proposed solution asap.Q9: What's the normal ODM product development time?A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap.Q10: How is the ODM device development cost calculated?A10: Development charge is in 2 parts: 1) Tooling design;2) PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.Q11: Can we sign NDA?A11: Yes, we can sign NDA.Q12: How to deal with the intellectual property?A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.Q13: What's your after-sales service for ODM smart device ? Can you support two year's or more warranty?A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer requires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
>>
