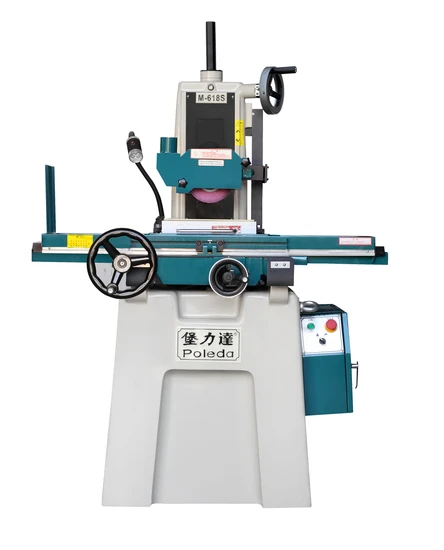

Precision Surface Grinder with Waterproof Spindle, 2HP Grinding Machine

Product Description

Product Description
Surface Grinding Machine Features:
High Efficiency: The POLEDA Surface Grinding Machine boasts an exceptional spindle speed, delivering rapid processing to significantly enhance productivity.
Extended Durability: Carefully engineered and manufactured, the surface grinding machine's mechanical parts are built for an impressively long service life.
Cost-Effective Maintenance: Designed for simplicity, the surface grinding machine requires minimal maintenance, ensuring low operational costs.
User-Friendly Operation: With intuitive controls, the surface grinding machine is easy to operate, thereby reducing operator training time and costs.
Safety and Reliability: The surface grinding machine is designed with high safety standards, ensuring operator protection at all times.
Robust Structural Rigidity: Constructed primarily of cast iron known for its excellent shock resistance, wear resistance, and thermal stability, the machine's bed, column, workbench, grinding wheel, and grinding wheel frame offer outstanding rigidity and stability.
Versatile Application: These superior performance characteristics make the surface grinding machine ideal for industrial production, capable of handling a variety of surfaces and complex forming surfaces, all without the need for mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Crafted from high-grade cast iron, the main castings of our machine undergo meticulous annealing treatment to eradicate internal stresses. This process ensures exceptional precision, robust rigidity, and prolonged machine lifespan. Slide Way: Our machine features a double V slide way, both left-right and front-back, with wear-resistant resin TI URCITE-B and precision shovel flower. This guarantees not only smooth and wear-resistant sliding but also makes it impeccably suitable for forming and grinding tasks.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing. This design ensures low noise and no vibration, delivering substantial torque even at high speeds. It is perfectly suited for heavy cutting as well as various forming grinding operations.
Automatic Lubrication System: Our machine features a state-of-the-art circulating automatic lubrication system. The lubricating oil commences its cycle as soon as the main spindle starts, providing forced lubrication to each screw and slide. This significantly reduces the wear degree of the slide. Additionally, an oil mirror installed above the column allows for real-time monitoring of the lubrication condition.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) is tailored according to your specific needs for color, logo, and other customizations. For some standard items already in stock, the MOQ is an accessible 1 set.
2.How do you control the quality of the products?
A. Quality is our paramount concern. We enforce rigorous quality control measures to ensure our high standards are unwaveringly upheld. Our core principle is to deliver superior quality, competitive pricing, and exemplary service.
3.What are the main products of your company?
A: We specialize in manufacturing an extensive range of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and much more.
4. What are your trade terms?
A: We accommodate various trade terms such as Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms include T/T (Telegraphic Transfer), requiring a 30% initial payment upon order placement, with the remaining 70% balance due before shipment.
6.What CNC systems do you use?
A: We offer a selection of CNC systems, including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN, allowing you to choose based on your preference and requirements.
7.How can I choose the most suitable machines?
A: Please provide us with the drawings and specifications of your products and their applications. Our experts will recommend the most fitting machines to meet your needs.
8.What kind of packaging do you offer?
A. We predominantly use robust plywood cases to ensure all goods arrive in impeccable condition. Customized packaging options are available upon request.
9.Can your plant do OEM?
A: Yes, we offer both OEM and ODM services to cater to any customer-specific requirements.
10.How about the warranty?
A: Our products are backed by a one-year warranty post-delivery. Furthermore, we provide lifetime service support for our machines, extending well beyond the warranty period.

---
