Bulk Cargo Hopper Eco Hpper on Port for Cement Clinker

Product Description

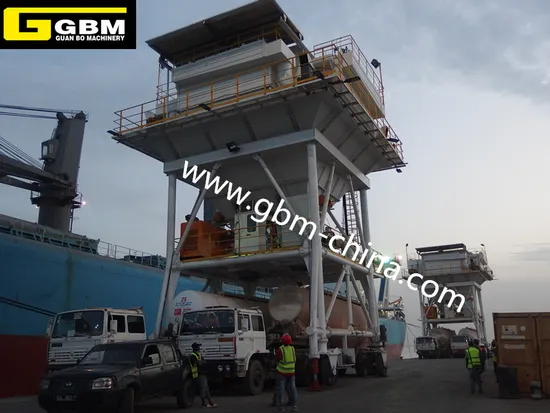

Eco-Hopper DetailThis equipment is mainly used for the unloading and loading of bulk cargoes. The bulk cargo is grabbed by a portal grab crane, and the grabbing materials are run to the loading and unloading by the relevant operation mechanism of the gate grab crane. Above the system, the grab is opened by the PLC control system of the portal crane and the bulk cargo is unloaded into the unloading funnel of the loading and unloading system; an electrohydraulic push rod control device is located on the discharge opening of the unloading funnel. It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which greatly improves work efficiency.
The hopper of this equipment is divided into two layers, because the lower hopper of the upper hopper is relatively large, the hopper is not easy to raise dust, the suction port of the dust collector is arranged in the middle of the two layers, and the upper and lower material ports are sealed and dusted with a pulse bag filter.The hopper designed by our company is mainly used for loading and unloading coal slag, cement powder and iron powder, and can be designed according to the requirements of customers. The dedusting device, electro-hydraulic door device and vibration feeding device can be installed on the funnel, which greatly improves the Handling efficiency. This equipment includes bagging machine, main support steel frame, gravity feed funnel, power distribution box, discharge chute, bag holder, pneumatic system and some optional devices such as dust collector, empty Presses, etc. Among them, the DCS bagging machine consists of feeders, weights, etc. This device is used for weighing and bagging various small particle materials such as grain, dried cassava, fertilizer, PVC powder, small pellet feed, etc. Small particles of ore, bauxite and so on GBM moblie type hoppers made by our company are suitable to load and unload the coal cinder, the cement powder and the iron powder and so on. It can be designed in nonstandard according to the needer. It can be installed on dust catcher, electric hydraulic door, vibrant supplying material devices and working devices. All of these can greatly improve the working efficiency.
FEATURES
Extensive dust control features (Flex flaps, dust seals, dust control filters, air compressor);
Multiple discharge options: to conveyor, to truck, via telescopic chute, through ancillary Material Feeder;
Multiple travel options: rail, static or pneumatic tyre mounted and powered and towable travel;
Increased safety features (level detectors, strain gauges, structurally designed to withstand overload to top of skirt);
Technical Parameters

Load Capacity	5000-2000 t/h	Specification of Dust Catcher	15Kw*2sets
Material			25Kw*2sets
Density	~1.0-1.8 t/m³	Whole Decibel	Less than 80 DB
Granullarity
Volume of Hopper	~50m³	Motor of Hydraulic Station	1.5Kw 440V 60HZ
Suitable Place	Load to Truck	Total Power	105Kw
Load Capacity of Each Land Legs	35T	Specification of Legs	Φ356*20 circular tube
Size of Load Mouth	2000*800 mm	Dead Weight of Hopper	~75T
Full Load Capacity of Hopper	80T	Size of Steel Grating	400mm * 400mm

Our Services: Act as a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customised project for clients.
b: Design and manufcture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a:Assist clients to prepare for the construction scheme.
b:Install and debug equipment.
c:Train the first-lin operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f:Provide techical exchanging.

FAQ:
Before you send us an inquiry about container spreader, please let us know some information as following:
1. The specification of your grab?
2. The diacharge capacity of hopper?
3. The volume of the hopper?
4. What type of hopper? normal hopper or dust proof hopper
5. What kind of hopper would you like? fixed or mobile?
6. which type of discharge would you like? discharge to truck or conveyor?
7. If discharge to truck , please inform the height of the truck
8.If discharge to conveyor , please inform the height/width/speed of the conveyor.
9. Do you have any other special requirements.
Thanks very much for your kindly cooperation!
