US$40,100.00-40,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Program Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Processing Time
Technician Will Do The Assessemt
Characteristic
Rigidity and High Precision
Specification
2250X1200X1850mm
Production Capacity
40sets/Month

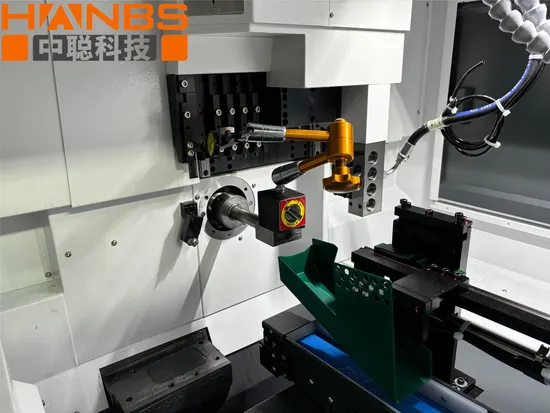

Product Description
| | Project | |
| Processing references | Maximum machining | Φ20mm |
| | Maximum machining length | 190mm |
| | Maximum axial bore diameter | Φ10mm |
| | Maximum axial work wire size | M8 |
| | Maximum spindle speed | 10000rpm |
| | Radial maximum bore diameter | Φ7mm |
| | Radial maximum bore tapping size | M6 |
| | Radial power head maximum rotation speed | ER11:10000/ER16:8000 |
| | Rated speed of radial power head | ER11:8000/ER16:6000 |
| | Maximum workpiece removal length | 100mm |
Tool dimension | Number of knives installed | 6 |
| | Tool (turning tool) | 12X12 |
| | sleeve | Φ25.0 X 4 |
| Clip head guide sleeve | Spindle spring collet | TSUGAMI B0205CCR |
| | Power head collet | ER11,ER16 |
| | Guide bushing | TSUGAMI BS-20#-B |
| Feeding speed | Z1/Y-axis feed velocity | 30m/min |
| | X1 | 20m/min |
| Electric motor | Spindle drive power | 2.5/3.7KW |
| | Power head drive power | 1KW |
| | For cutting fluid | 0.4KW |
| | Cooling of spindle | 0.075KW |
| | Lubricating oil | 0.01KW |
| Others | Spindle center height | 1060mm |
| | Barometric flow | 0.7mpa 0.5m³/min |
| | Main circuit breaker capacity | 40A |
| | Input power | 9.3KW |
| | Weight | 2.6T |
| | Overall dimensions | 2250X1200X1850mm |
Q&A
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. How about your price?
A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions.
Q4.Do you have CE certificate?
A. Yes,we have.
Q5.What is MOQ?
A.1 Unit.
>>
