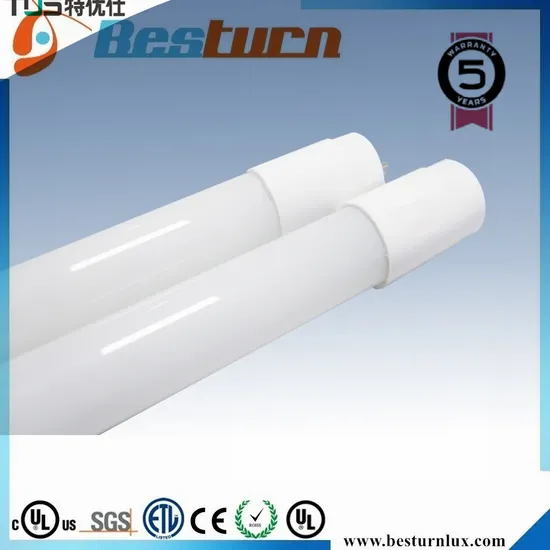

Double-End Replacement T8 Retrofit 18W, 36W LED Glass Tube

Product Description

TUS Code	Power (W)	Lumen (Lm)	CCT(K)	Leds	Bea mAngle (°)	CRI(Ra)	Dimensio n(mm)	Power Factor	Voltag e(V)	Q'ty/ Ctn (PCS)
TLT801 G-8D	8W	800lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.5	AC220V ~50Hz	25
TLT801 G-15D	15W	1600lm		SMD2835	220°	>75	φ26× 1198mm	0.5		25
TLT801 GA-9D	9W	900lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.5	AC220V ~50Hz	25
TLT801 GA-18D	18W	1800lm		SMD2835	220°	>75	φ26× 1198mm	0.5		25
TLT801 GB-9D	9W	1000lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.5	AC220V ~50Hz	25
TLT801 GB-18D	18W	2000lm		SMD2835	220°	>75	φ26× 1198mm	0.5		25
TLT801 GC-9D	9W	900lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.85	AC220V ~50Hz	25
TLT801 GC-18D	18W	1800lm		SMD2835	220°	>75	φ26× 1198mm	0.85		25
TLT801 GD-9D	9W	900lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.95	AC220V ~50Hz	25
TLT801 GD-18D	18W	1800lm		SMD2835	220°	>75	φ26× 1198mm	0.95		25
TLT801 G-11D	11w	1100lm	3000/ 4000/ 6500K	SMD2835	220°	>75	φ26× 598mm	0.95	AC220V ~50Hz	25
TLT801 G-22D	22W	2500lm		SMD2835	220°	>75	φ26× 598mm	0.95		25
TLT801 G-24D	24W	3000lm		SMD2835	220°	>75	φ26× 1198mm	0.95		25

Advantages of Double-end glass T8 LED tube:
T8 light tubes is with 1200mm 16w/18w/22w/24w, 600mm 8w/9w/11w available for your choose.
Power factor is with 0.5, 0.85, 0.95 for your option.
Three kinds of color temperature range from 3000K to 6500K for your choose.
LED T8 Tube Light is with super brightness Epistar SMD chips, high lumen 110Lm/w and CRI>75;
Body in full glass, light transmittance is up to 93%, abrasion, anti- oxidation, no yellowing;
Patent nano-optical coatings, lighting uniform, softy, no shadow.
Energy saving: reducing energy consumption usage by 50-80% than fluorescent tube.
Built-in isolated constant current double-ended driver;
Double-end glass T8 LED tube Application:
T8 light tube is wide used as light source for weatherproof fitting, office louver fitting, etc. applied to supermarket, school, hospital, factory, office, etc. for indirection lighting, exhibition display lighting, advertisement indicating lighting etc.
T8 LED Lights Packing Information
- Individual package and outer carton, 25Pcs for one package
- Professional and safe package ensure goods can safety arrive on our customers' side.
- We also customize package according to customers' requirement
- For each specification packing details please refer to below sheet:

Spec	Q'ty/Ctn	Size/1 Pcs (mm)	G.W.(KG)/ Ctn	Length (mm)	Width (mm)	Height (mm)
600mm	25	600*27*27	3.7	660	160	170
1200mm	25	1200*27*27	7.05	1260	160	170

T8 LED Lights Wiring Diagram
1. LED T8 tube should be installed on G13 lamp base.
2. Can be installed on traditional fluorescent batten or fixture.
3. The Wiring type of replacement is different for inductive ballast or electronic ballast.
Kindly be noted and see below instruction.

Q: 1. Can I have a sample order for led light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 5000pcs.

Q: 3. Do you have any MOQ limit for led light order? A: Low MOQ, 1pc for sample checking is available

Q: 4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: 5. How to proceed an order for led light? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q: 6. Is it OK to print my logo on led light product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q 7: Do you offer guarantee for the LED light products? A: Yes, we offer 2-5 years warranty to our products.

Q 8: How to deal with the faulty led lights? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

---
