Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Vertical Shaft
Transport Package
Iron Shellframe Box
Specification
ISO9001: 2000
Production Capacity
5000sets/Year
Product Description

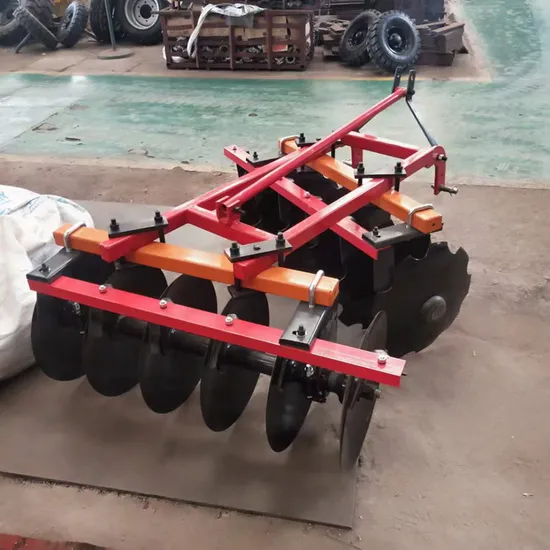

1BQX -1.1 Light-duty Disc Harrow
1BQX -1.1 light-duty disc harrow has 12 blades and the working width 1.1m. It is designed for the application of soil tillage as follows:
For tilled or non-tilled soil;
For Clod breaking and land leveling after plowing;
For soil stirring ,chopping up unwanted weeds and soil and fertilizer mixing;
Tilling and chopping up crop residues after harvesting;
Soil loosening and seedbed preparing before planting.
1BQX-1.1 light disc harrow is a mounted light-duty opposed disc harrow for 12-20hp tractor .It is equipped with 65 Mn disc blade of 460*3mm ,and hardness 38-44 HRC . The blades have been heat treated to assure the toughness and wear ability of disc blade. The disc harrow has rigid steel frame and the main beam is 50-70 mm ,strong and durable . Its square shaft is made of 45# steel with quenching and tempering and the size is 28*28 mm. Bearing is covered by sealed bearing seat to protect it from sand, dust etc.It has small resistance and short maintenance time.
Main specification:
| Type | 1BQX-1.1 |
| Overall Dimensions | Length | 1590 |
| Width | 1230 |
| Height | 830 |
| Total weight(kg) | 200 |
| Working width(cm) | 1.1 |
| Max. Working depth(cm) | 10 |
| Ground clearance(mm) | 280 |
| Working angle | The front disc assembly(degree) | 0-20(0,11,14,17,20) |
| The rear disc assembly(degree) | 0-23(0,14,17,20,23) |
| Working efficiency(ha\h) | 0.2 |
If you need the 1BQX-1.1Light Disc Harrow,please contact me:
>>
