HDPE/UPVC/PC/PP Plast-Steel Profile Extrusion Line

Product Description

HDPE/UPVC/PC/PP Plast-Steel Profile Extrusion Line

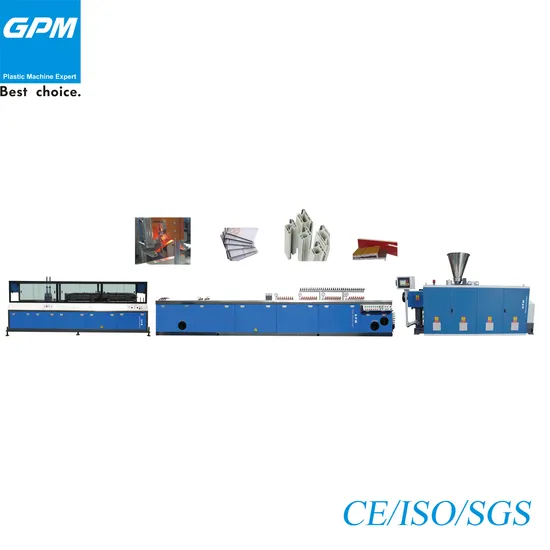

GPM series PVC profile Production Line is mainly used for many profile product. The unit consists of conical double double extruder, mold, vacuum forming tank, haul-off machine, cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer .
YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.

Conical twin-crew extruder technical specification for HDPE/UPVC/PC/PP Plast-Steel Profile Extrusion Line
Model	Screw Diameter(mm)	Main Moter(kw)	Output Capacity(kg/h)
GSZ-45	45/100	15/18.5	60/80
GSZ-51	51/105	18.5/22	80/110
GSZ-55	55/110	22/30	120/150
GSZ-65	65/132	37/45	280/350
GSZ-80	80/156	55/77	380/450
GSZ-80A	80/173	75	500/650
GSZ-92	92/188	110/132	700/850
GSZ-95	95/196	132/160	1000

Downstream line technical specification

Model Max.product width(mm) Total power(kw) Water Cooling(m³/h)

GYF110 110 16 4

GYF240 240 21-32 7

GYF300 300 21-32 7

GYF400 400 21-32 7

Product Display of HDPE/UPVC/PC/PP Plast-Steel Profile Extrusion Line
Special configuration:
1. GearBox
High efficiency single screw extruder , high output.
2.Feeding mechanism
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .
3.Haul-off
New-designed haul-off structure , strengthen the design of torque .
4.No-dust Cutter
High precision cutting, no dust and low noise.

---
