Garden Machinery Mini Excavator Excavator Ton 1 for Farm

Product Description

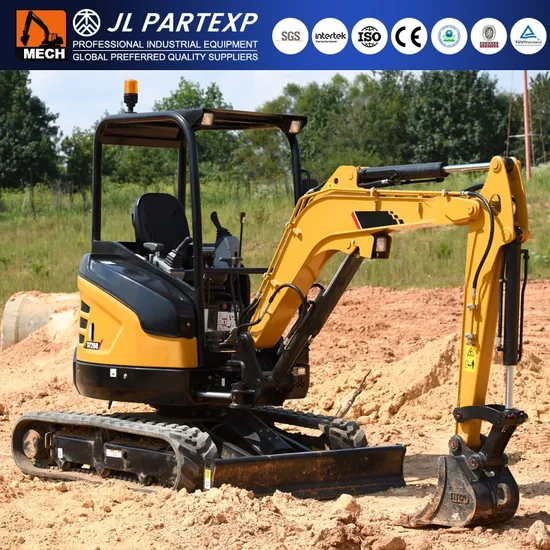

Short-tail-swing mini excavator
Reliable and easily transportable, This mini excavator with a swing boom and a true zero tail swing brings big performance and allows you to work with confidence in tight areas.
The open canopy design allows for improved visibility of the jobsite.Featuring a fully enclosed cab, operators can enjoy a comfortable cockpit while taking on earth-moving and road-building projects in any conditions.
The weight-adjustable suspension seat gives operators a comfortable space for a full day's work. Technicians have ground-level access to routine maintenance areas to make the machine easy to service. To top that off, you can move from job to job crushing deadlines while keeping logistics costs at a minimum.
· Swing boom functionality
· True zero tail swing
· Trailer ready with clear tie-down points to ensure safety during transport
· Primary auxiliary circuit to run powered attachments
· 12″ rubber tracks for the preservation of finished surfaces
· Weight-adjustable suspension seat
· Powerful Yanmar engine
TOP FEATURES
ENGINE POWER
The successful Yanmar T4F engine guarantees reliable performance, even in difficult working conditions.
DURABILITY
The reinforced structure improves stability and extends the service life.
FUEL CONSUMPTION
The intelligent control system adapts the pump capacity to the available engine power for greater efficiency and reduced fuel consumption.
HYDRAULIC SYSTEM
Load-sensing hydraulic system for outstanding efficiency and performance.
VARIETY OF APPLICATIONS
Standard connections provide many options for adding accessories from any manufacturer for various applications.
ORIGINAL ACCESSORIES
Original parts and accessories represent maximum availability. Continuous certified quality comes guaranteed!
MAINTENANCE INTERVAL
Long maintenance intervals ensure high cost-effectiveness as a result of more efficient and safer machines.
EASE OF SERVICING
The large engine bonnet and the clear arrangement of the key components in the centre make maintenance and service quick and easy.
Operating excavators with unobtrusive view
A good view of outside is indispensable if you are to perform your work accurately and quickly. The cab offers the operator a wide field of view, allowing them to keep an eye on all areas and work steps at all times.
The entire work area can be controlled with ease thanks to the large front, side and rear windows, without the driver having to get out of their seat.
The high-quality ergonomic seat is not only comfortable to sit on, it also provides you with unusually generous legroom and freedom of movement. The powerful heater maintains a pleasant temperature in the cab at all times while you work. And the modern Yanmar engine, combined with the sophisticated damping, provides additional comfort by reducing cab vibrations and lowering the noise level.

Convenient maintenance is at the top of the agenda thanks to rear access
The large engine bonnet and the clear arrangement of the key components in the centre make maintenance and service quick and easy:
The air filter, water separator, oil dipstick, expansion vessel and oil filler neck are especially easy to reach.
Quiet and low-vibration engine
+ Responsive, precise control
+ Ergonomic, comfortable seat
+ Clear displays
+ Optimal visibility on all sides
+ Heater
+ ROPS/OPG-certified for safety in operation
You can communicate with us directly to obtain high-quality customized services!!! >>>
OPTIONAL FULLY ENCLOSED CAB
TECHNICAL SPECIFICATIONS

DIMENSIONS
Boom Length	2100 mm	6' 11"
Stick (Arm) Length	1300 mm	4' 3"
A Transport Length	4285 mm	14' 1"
B Transport Width	1550 mm	5' 1"
C Transport Height	2430 mm	8' 0"
D Upper Structure Width	1375 mm	4' 6"
E Blade Height	300 mm	12"
F Track Width (standard shoe)	300 mm	12"
G Track Gauge	1250 mm	4' 1"
H Ground Clearance (minimum)	290 mm	11"
I Tail Swing Radius	775 mm	2' 7"
J Track Length on Ground	1560 mm	5' 1"
K Track Length	1960 mm	6' 5"
You can communicate with us directly to obtain high-quality customized services!!! >>>

Zero tail swing radius and independent boom swing allow operation in extremely confined spaces!!!

TECHNICAL SPECIFICATIONS
Operating Weight	2760 kg	6,085 lb
Ground Pressure	25.5 kPa	3.7 psi
Engine	Yanmar 3TNV80F
Displacement	1.0 L	62.6 in³
Gross Power	14.6 kW	19.6 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	72.0 L/min	19.0 gal/min
Operating Pressure (maximum)	24.5 MPa	3553 psi
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	24.5 MPa	3553 psi
Travel Speeds (maximum)	2.4 / 4.5 km/hr	1.5 / 2.8 mph
Travel Effort (maximum)	20.0 kN	4,496 lbf
Grade Capability (maximum)	35°
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	19.6 MPa	2843 psi
Swing Speed (maximum)	10 RPM
Undercarriage (standard)	Belted Rubber Track
Track Shoe Width (standard)	300 mm	12"
Track Rollers (per side)	3
Carrier Rollers (per side)	1
You can communicate with us directly to obtain high-quality customized services!!! >>>

SERVICE REFILL CAPACITIES
Fuel Tank Capacity	34.0 L	9.0 gal
Hydraulic Tank Capacity	30.0 L	7.9 gal
Engine Oil Capacity	3.4 L	0.9 gal
Cooling System Capacity	4.1 L	1.1 gal
You can communicate with us directly to obtain high-quality customized services!!! >>>

WORKING RANGE
Boom Length	2100 mm	6' 11"
Stick (Arm) Length	1300 mm	4' 3"
A Maximum Digging Height	4410 mm	14' 6"
B Maximum Dumping Height	3100 mm	10' 2"
C Maximum Digging Depth	2820 mm	9' 3"
D Maximum Vertical Wall Digging Depth	2585 mm	8' 6"
E Maximum Reach at Ground Level	4850 mm	15' 11"
F Minimum Swing Radius	2110 mm	6' 11"
DIGGING PERFORMANCE
Boom Length	2100 mm	6' 11"
Stick (Arm) Length	1300 mm	4' 3"
Bucket Breakout Force (ISO)	24.3 kN	5,463 lbf
Stick (Arm) Digging Force (ISO)	14.2kN	3,192 lbf

Standard 2100 mm (6'11") Boom
Standard 1300 mm (4'3") Arm
Standard 300 mm (12") Track Shoes
No Bucket

---
