CNC Milling Machine Vmc1060 for Metal Processing

Product Description

NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.

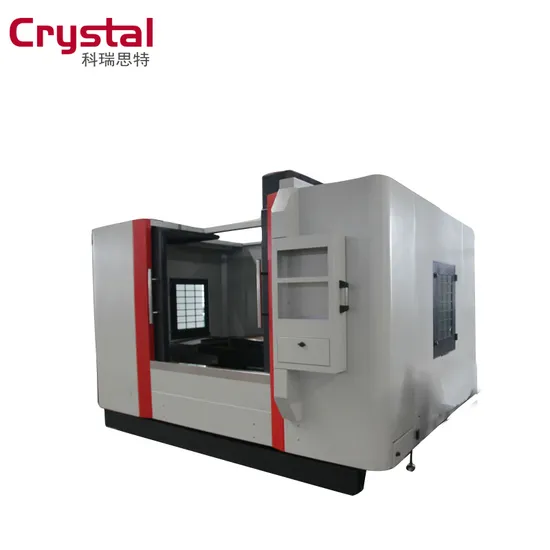

CNC milling machine VMC1060 for metal processing
VMC1060 Vertical Machining Center Features:

Specifications	VMC1060
Workbench specification	1300*600mm
Workbench maximum load	800kg
X/Y/Z axis coordinate schedule	1000*600*600
Distance between spindle center and column guide surface	600mm
Distance between spindle end face and worktable surface	180-780mm
X/Y/Z largest feed speed	10000 mm/min
X/Y/Z largest fast moving speed	20/20/15 m/min
The spindle maximum speed	8000rpm
The spindle taper hole	BT40
Spindle motor	11/15 Kw
X/Y/Z axis servo motor	2.5/2.5/2.5
X/Y/Z motor connection	Direct acting
X/Y/Z guide rail form	X/Y/Z sliding rail
The workbench T slot	5-18×120 mm
Positioning accuracy	±0.005/300mm
Repeat positoning accuracy	±0.004mm
Tool storage form	Turntable Style Tool Magazine/ disc type tool magazine
Capacity of tool storage	16 turntable Style Tool Magazine/24 disc type tool magazine
Maximum tool weight	8kg
The biggest tool length	250/350mm
Electric capacity	16 KVA
Machine size (L×W×H)	3340*2500*2700mm
Weight	7000kg

FAQ
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A: We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A:Yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A:We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on tacrystal.en.made-in-china.com, or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need. We will give
you a recommendation about machine model.

---
