Hf-358t Thin-Wall Products High Speed Precision Injection Molding Machine6

Product Description

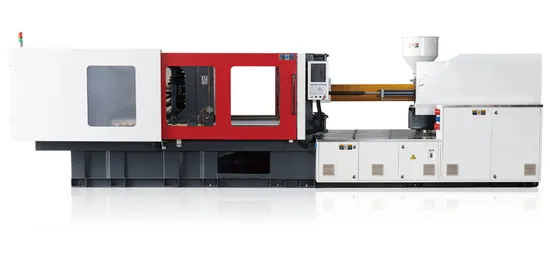

K&E Machinery (Ningbo) Co., Ltd. presents the HF-358T High Speed Energy Saving Servo Injection Molding Machine. This high-quality machine is perfect for producing Thin-wall plastic products such as thin-wall box, fruit and vegetable baskets, and pet preforms. With its advanced technology and energy-saving features, it is an excellent choice for any injection molding needs.
Parameters:

SPECIFICATION		358
Injection Unit
Screw diameter	mm	52
Screw L/D ratio	L/D	24.4
Shot volume(theoretical)	CM3	490
Injection weight	g	447
Injection speed	mm/s	474
Injection rate	g/s	917
Injection pressure	Bar	151
Screw speed	rpm	0-350
Clamping Unit
Clamping force	KN	3580
Open stroke	mm	545
Space between tie-bars(W*H)	mm	640*640
Max mould height	mm	670
Min mould height	mm	200
Ejector stroke	mm	100
Ejector force	KN	80
Others
System pressure	Mpa	16
Motor power servo	Kw	55+37
Heating power	Kw	23
Machine dimension(L*W*H)	M	7*1.82*2.1
Machine weight	Ton	15.5

Product Description Introducing the HF-358T High Speed Energy Saving Servo High Quality Injection Molding Machine by K&E Machinery (Ningbo) Co., Ltd. This injection machine is perfect for producing THIN-WALL plastic products such as THIN-WALL BOX, fruit and vegetable baskets, and pet preforms. With its energy-saving servo technology, it ensures efficient and high-speed injection molding. The machine comes with a 12-month warranty and offers engineer installation and debugging services. Get this top-quality injection molding machine for your plastic production needs.

---
