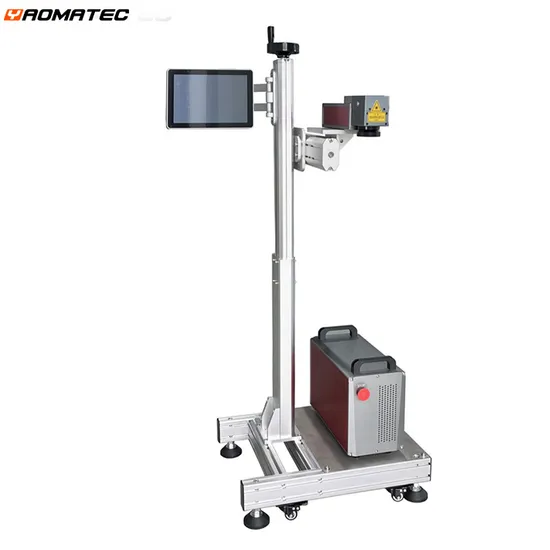

Yaomatec pvc pipe fiber laser marking machine pvc pipe printer pvc label printer Product Parameters
| type | fiber-optic laser |
| wavelength | 1064nm |
| average output power | ≥30W@50kHz |
| Output port spot size | 5-9mm |
| pulse repetition frequency | 20KHZ-80kHz |
| Power stability (average power) | <3% |
| Pulse Width | 150-190ns |
| master control | 10.1 inch external controller |
| operating system | UNIX system |
| Marking speed | >=7000-8000mm/s(high speed>=10000mm/s) |
| mark character speed | 300 characters/s, Roman font, character height 1mm |
| resolution | 3-5μm |
| Marking accuracy | ≤3-5μm |
| Minimum marking line width | ≤10μm |
| mark depth | ≤1mm(Depends on material) |
| Font type | Built-in multiple font effect options, fonts can be edited |
| Font effects | Dot matrix or line printing effect, you can edit and modify the font by yourself |
| Minimum character height | ≤0.5mm |
| Marking range | Focusing lens F=160mm, range 100×100mm (standard), optional range 0-800mm |
| working focal length | 180mm±2mm(160focusing lens) |
| multi-languages | English, French, Spanish, German, Chinese, Russian, Arabic, etc. |
| Administrative permissions | Multi-user management permissions |
| reserved signal | Start printing, printing status, printing completed, fault alarm |
| Data protection | With power-off data protection function |
| Missed dose monitoring | Provides overspeed alarm function due to false triggering due to material reflection |
| Remove intersection | Automatically remove intersection points and avoid key points of intersection |
| Coding software | Can realize single and double machine code sending |
| Laser type/wavelength | Red light preview, dual red light positioning focus, wavelength 1064nm |
| cooling method | air cooling |
| rated power | 0.5KW |
| Power requirements | 220V/single phase/50Hz/600W |
| ambient temperature | 18-35ºC |
| Maintenance method | Lifelong maintenance-free |
| Industrial protection | IP54 |
| Support printing information | Can print text information, variable information, serial number, batch number, bar code, QR code, micro-label and pattern. There are no restrictions on the number of lines and font size of information printed. |
| Applicable materials | Mainly used in 3C industry marking, white goods, electrical casing marking, flying marking of food and drug production dates, surface layer removal of 3D printing materials and other fields. |
2. Delivery time: 3- 5 days
2,please confirm you have the ability of custom clearance about the printer before buy it. it'sbetter use company name to receive.
